The Kawasaki OH-1 (nicknamed Ninja) is Japan's first indigenous observation/combat helicopter intended to replace the older, local-built US OH-6. Although designated as an observation helicopter, the OH-1's design more closely resembles that of a conventional gunship on account of its narrow fuselage, stepped tandem cockpit, crew protection armor, and prominent stub wings which can carry a variety of stores, primarily air-to-air missiles for self-defense. It's other notable structural feature is a Fenestron ducted fan anti-torque tail while avionics include a targeting system involving FLIR, TV, and laser ranging systems. Although the total size of the project has been scaled down due to budget cuts, the OH-1 is slowly being introduced to the Japanese Ground Self-Defense Force with the possiblity of a dedicated attack variant being developed to replace the AH-1 Cobra.

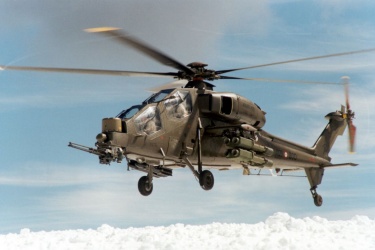

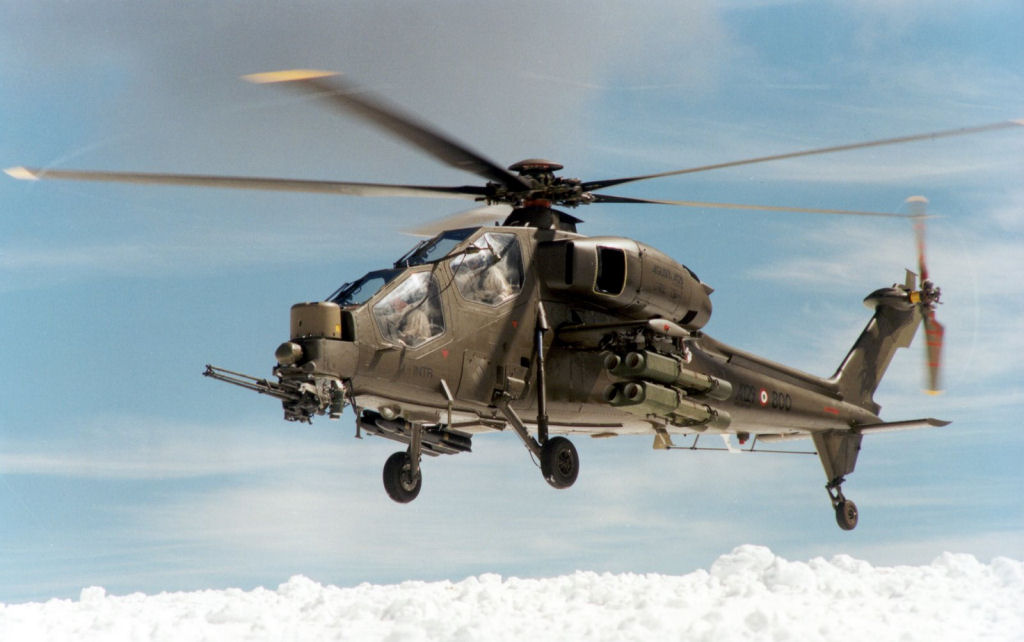

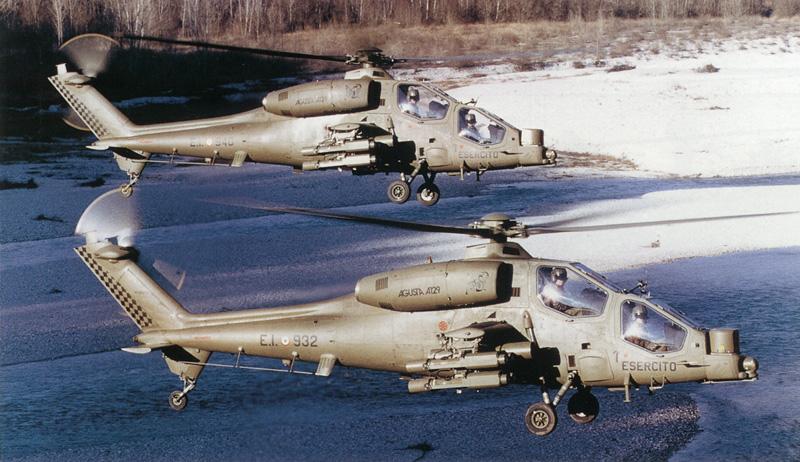

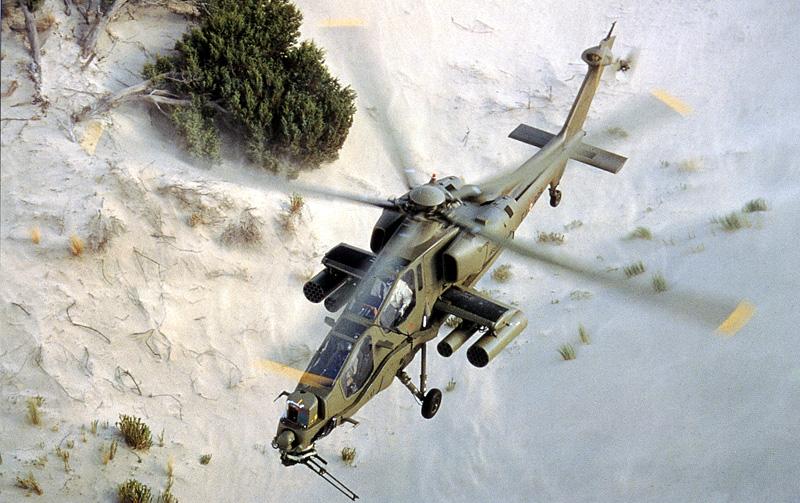

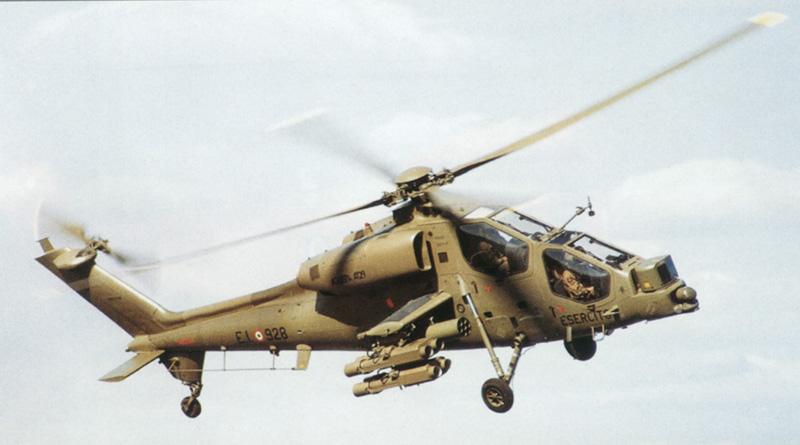

First flight of the Mangusta took place on 15 September 1983 with deliveries beginning in 1990 to the Italian Army as the A 129. A version designed exclusively for export was known as the A 129 International and features more powerful LHTEC engines in place of the earlier Piaggio-built Rolls-Royce Gem as well as a five-bladed rotor, wider choice of weaponry, and a fixed nose-mounted gun. An upgraded version for Italian service is the A 129 CBT with most of the improvements in the International albeit with the earlier Gem powerplant.
Preceded by:
NoneSucceeded by:
None![]() | |
Design | A 129 |
Name | Mangusta |
Type | Close Support |
Year | 1990 |
Crew | 2 |
Dimensions | |
Length | 14.29 m |
Height | 3.350 m |
Rotor Diameter | |
Rotor Disc Area | |
Wing Span | 11.90 m |
Wing Area | n/a |
Weight | |
Empty | 2,520 kg |
Maximum | 4,100 kg |
Wing Loading | 36.9 kg/m² |
Performance | |
Speed | 276 km/h |
Ceiling | 4,724 m |
Range | ? |
Powerplant | |
Engine | 2 x Gem Mk. 1004 Piaggio 608 kW |
Thrust/Weight | 0.59 |
Armament | |
Guns | 2 x 12.7/20-mm |
Payload | 1,200 kg |
Hardpoints | 4 |
AS Weapons | AGM-114 HOT TOW |
Production | |
Built | 60 |
Total | 60 |
