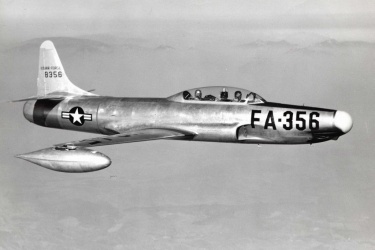

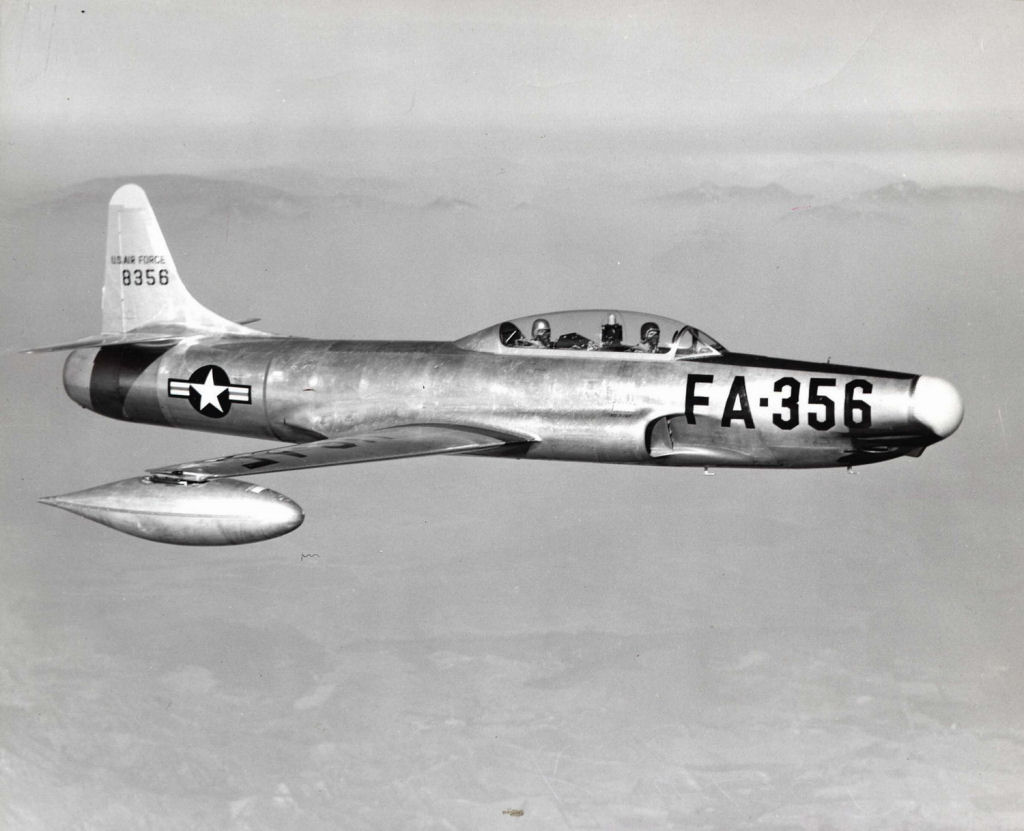

Basis for the Lockheed F-94 Starfire began with the company's earlier T-33 trainer, itself a development of the famous P-80 jet fighter thus marking the third and final phase in the evolution of this remarkable series of jet aircraft. The Starfire was in many ways similar to the T-33 sharing most of its components but was equipped with new afterburning engines, fuel tanks hung under the wingtips, and a lengthened nose which housed the radar. Early variants had numerous performance deficiencies which ultimately were corrected through various structural modifications and the installation of license-built Rolls-Royce Nene engines. Armed with unguided rockets and extensive electronic equipment (such as autopilot, automatic tracking and firing, and ILS) the F-94 became the USAF's first all-weather jet interceptor and was only retired until 1959 from front-line service with ANG reserve units phasing out in 1960.
The first flight of the YF-94 prototype (basically a converted T-33) took place on 16 April 1949 entering service as the F-94A. The F-94B featured revised hydraulics and larger wingtip tanks while the F-94C was a considerably redesigned follow-up which had originally been designated F-97A. It featured Nene engines locally produced, swept back tailplanes and could carry unguided rockets. A ground attack version known as the F-94D was never built.
Succeeded by:
F-89 Scorpion (1950)Design | F-94B | F-94C |
Name | Starfire | Starfire |
Type | Interceptor | Interceptor |
Year | 1951 | 1953 |
Crew | 2 | 2 |
Dimensions | ||
Length | 12.22 m | 13.56 m |
Height | 3.861 m | 4.521 m |
Wing Span | 11.43 m | 11.38 m |
Wing Area | n/a | n/a |
Weight | ||
Empty | 4,565 kg | 5,764 kg |
Maximum | 7,640 kg | 10,970 kg |
Wing Loading | 350.0 kg/m² | 506.8 kg/m² |
Performance | ||
Speed | 975 km/h | 1,030 km/h |
Ceiling | 14,630 m | 15,667 m |
Range | 1,070-1,456 km | 1,295-2,052 km |
Powerplant | ||
Engine | 1 x J33-A-33 Allison 2,722 kgf | 1 x J48-P-5/5A Pratt & Whitney 3,969 kgf |
Thrust/Weight | 0.54 | 0.63 |
Armament | ||
Guns | 4 x .50-inM3 Browning | - |
Payload | - | - |
AA Weapons | - | Mk. 4 FFAR |
Production | ||
Built | 357 | 387 |
Total | 854 |
