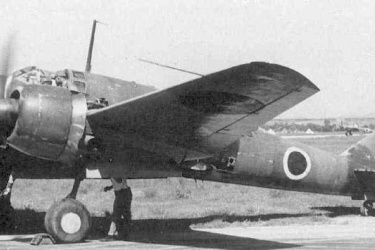

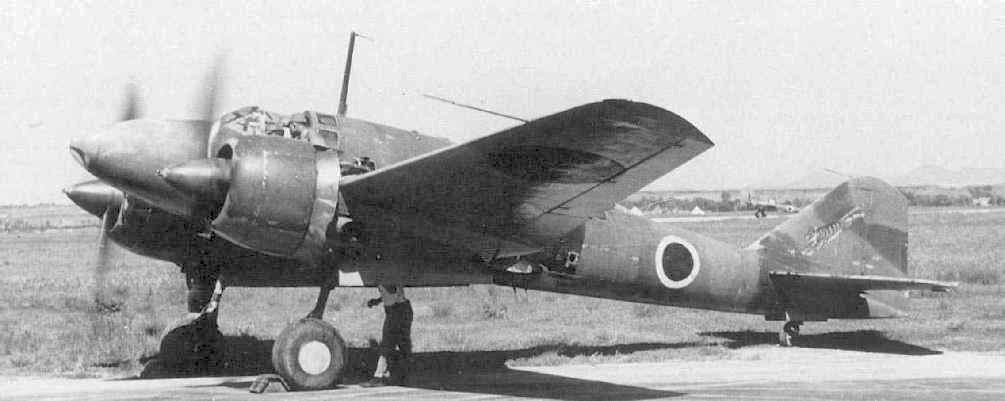

Japan was the only nation in World War II to design a purpose-built strategic reconnaissance aircraft, this was the remarkable Mitsubishi Ki-46 'Dinah'. Designed by Tomio Kubo, the Ki-46 was one of the war's most attractive and recognizable aircraft with its aerodynamically curved fuselage which gave it a somewhat futuristic appearance. It was also faster than the Zero and could usually operate with impunity over Allied-controlled areas well into 1944 thanks to its impressive speed (a number of these aircraft also carried preliminary reconnaissance flights over Malaya before the war). B-29 raids eventually caused the Ki-46 to be adapted to other less-suitable roles like night fighters while the introduction of fast US fighters like the P-47N and P-51H resulted in mounting losses to an otherwise outstanding and unique aircraft which was so effective that even Germany had made plans to license-produce it (unsuccessfully).
The prototype Ki-46 made its maiden flight in November 1939 with the disappointing Ha-26-I engine which was also used to power the production Ki-46-I. These problems were addressed in the Ki-46-II which featured a supercharged Ha-102 engine which gave it a speed of 375 mph, faster than any Allied fighter available at the time. The Ki-26-III was improved even further with a new nose shape which became its trademark, a new engine, and even greater speed. The last planned version was the Ki-26-IV with yet another powerplant upgrade but did not enter production. However, a number of conversion variants were deployed in small numbers, these included the Ki-46-II KAI radio-navigation trainer, the Ki-46-III KAI interceptor for use against B-29s, and the Ki-46-IIIb ground attack aircraft.
Preceded by:
NoneSucceeded by:
NoneDesign | Ki-46-II | Ki-46-III |
Code Name | Dinah | Dinah |
Type | Strategic Recon | Strategic Recon |
Year | 1941 | 1942 |
Crew | 2 | 2 |
Dimensions | ||
Length | 11 m | 11 m |
Height | 3.880 m | 3.880 m |
Wing Span | 14.70 m | 14.70 m |
Wing Area | n/a | n/a |
Weight | ||
Empty | 3,263 kg | 3,831 kg |
Maximum | 5,800 kg | 6,500 kg |
Wing Loading | 181.3 kg/m² | 203.1 kg/m² |
Performance | ||
Speed | 603 km/h | 630 km/h |
Ceiling | 10,720 m | 10,500 m |
Range | 2,473 km | 4,000 km |
Powerplant | ||
Engine | 2 x Ha-102 Mitsubishi 805 kW | 2 x Ha-112-II Mitsubishi 1,119 kW |
Thrust/Weight | 0.60 | 0.71 |
Armament | ||
Guns | 1 x 7.7-mm | 2 x 20-mm |
Payload | - | - |
Production | ||
Built | 1,093 | 611 |
Total | 1,742 |
