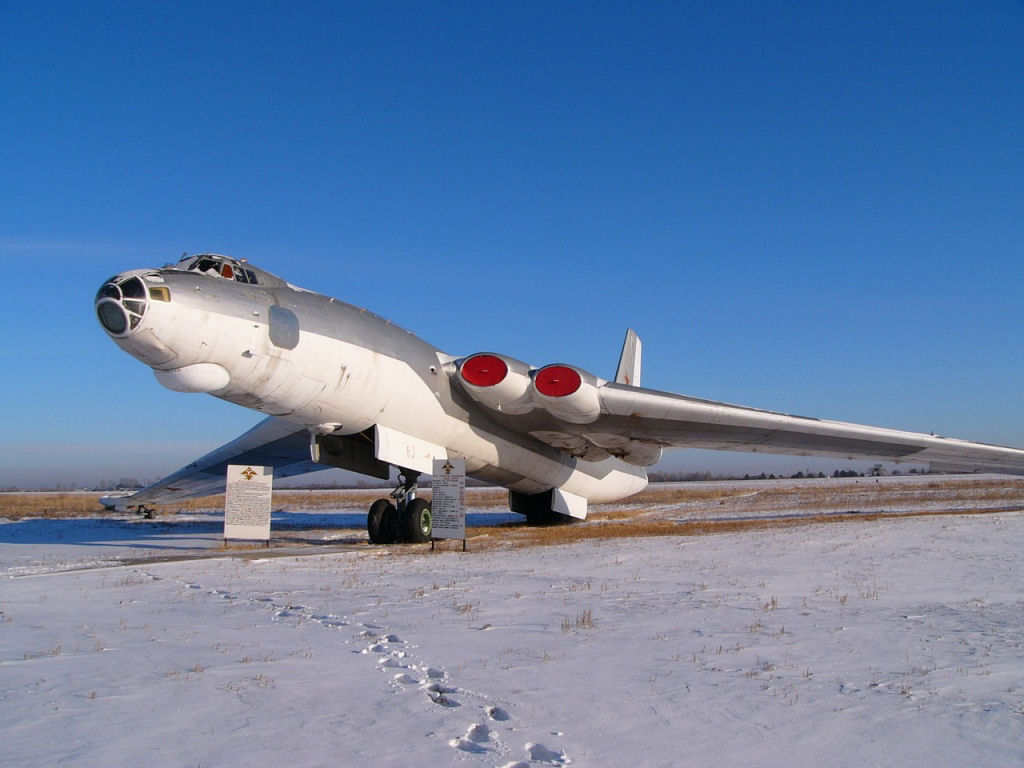

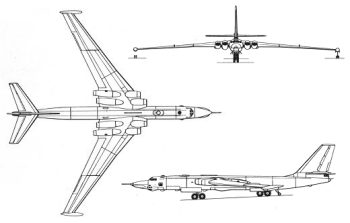

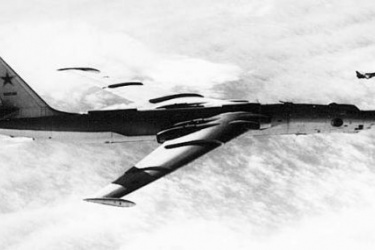

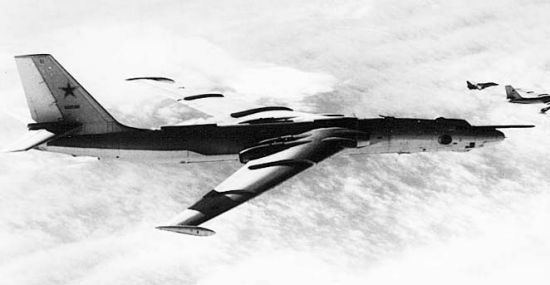

The Myasishchev M-4 'Bison' was the Soviet Union's first four-engine jet bomber to enter service, built with the intention of launching nuclear strikes against the continental United States. The M-4 was designed with massive swept wings and a unique bicycle landing gear (stabilized by wing-mounted outriggers) but it unfortunately was never able to fulfill its original requirement on account of it being underpowered thus forced to carry a reduced fuel load. As a result, the M-4 was redesigned and readapted for other roles, particularly for maritime patrol, reconnaissance, electronic counter-measures, and as a tanker (some of these were adapted with radar and a fixed inflight refuelling probe). M-4s were eventually used mostly by Soviet Naval Aviation and were operational even after the Cold War ended in their secondary roles. Interestingly, they were replaced as bombers by a turboprop design: the Tu-95.
The prototype M-4 first flew on 20 January 1953 and was first seen by the West during a May Day flyby over Moscow in 1954. The basic M-4 'Bison-A' was eventually replaced by the significantly improved M-6 'Bison-B' known by its military designation 3M, These included the 3MS bomber and the 3MS2 tanker. The final variants were the 3MD 'Bison-C' some of which had uprated engines and were known as the 3MN. Tanker versions were the M-4-2 based on the original M-2 as well as the 3MS-2 and 3MN-2 which were based on their respective bomber versions.
Preceded by:
Tu-4 'Bull' (1949)Succeeded by:
Tu-95/142 'Bear' (1957)Design | M-4 | 3M |
Code Name | Bison-A | Bison-B |
Type | Strategic Bomber | Strategic Bomber |
Year | 1955 | 1956 |
Crew | 8 | 7 |
Dimensions | ||
Length | 47.67 m | 51.70 m |
Height | 10.400 m | 10.400 m |
Wing Span | 50.53 m | 53.14 m |
Wing Area | n/a | n/a |
Weight | ||
Empty | 79,700 kg | 74,430 kg |
Maximum | 100,000 kg | 100,000 kg |
Wing Loading | 306.4 kg/m² | 284.3 kg/m² |
Performance | ||
Speed | 930 km/h | 940 km/h |
Ceiling | 12,500 m | 14,900 m |
Range | 10,700 km | 11,850 km |
Powerplant | ||
Engine | 4 x AM-3D Mikulin 9,500 kgf | 4 x VD-7B Dobrynin 13,000 kgf |
Thrust/Weight | 0.43 | 0.64 |
Armament | ||
Guns | 8 x 23-mm | 6 x 23-mm |
Payload | 18,000 kg | 24,000 kg |
Production | ||
Built | n/a | n/a |
Total | 200 |
