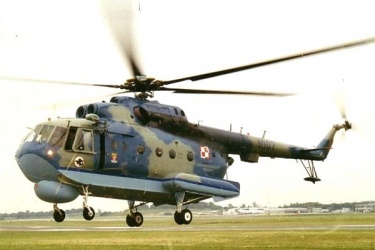

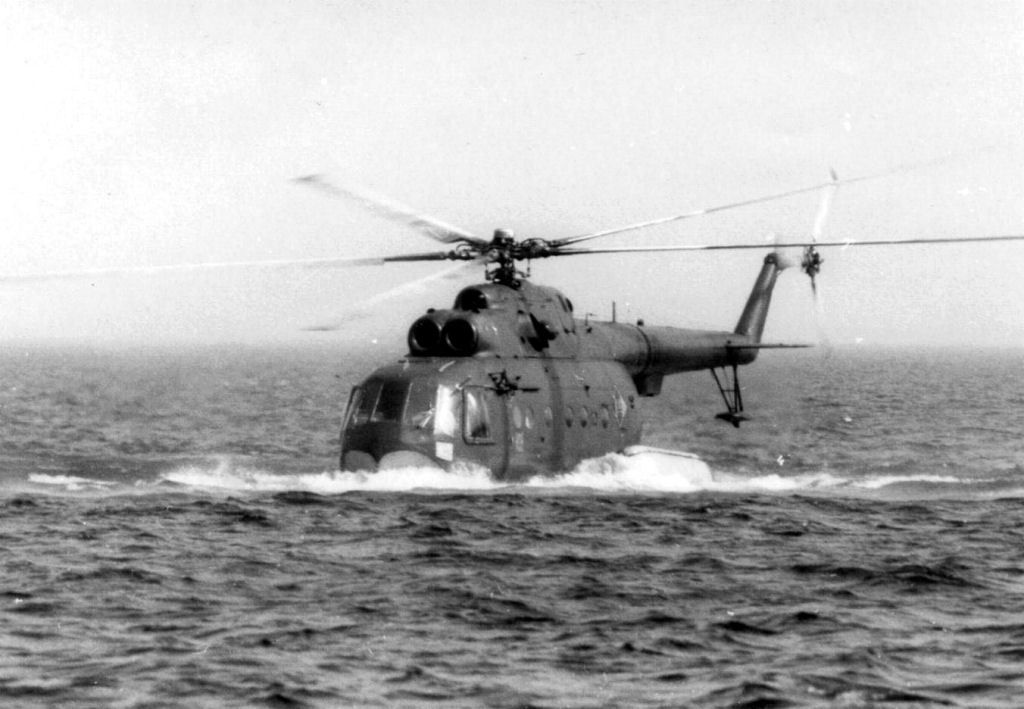

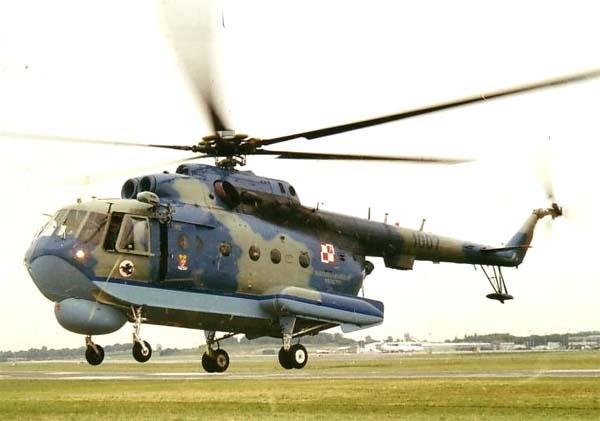

The Mil Mi-14 'Haze' is a navalized version of the ubiquitous Mi-8, specializing in the coastal anti-submarine warfare role as opposed to the Ka-27 which is usually operated from ships. Considerable revision of the fuselage was necessary to provide this new helicopter with amphibious capabilities, thanks to this it has a pronounced boat hull bottom with a sponson on each side and a small float under the tail boom while at the same time incorporating a retractable undercarriage and an enclosed weapons bay. Avionics and weapons include a Doppler radar, a magnetic anomaly detector (MAD), and sonobuoy capabilites in addition to torpedoes and depth charges, while some variants are specialized in the search and rescue (SAR) role with rescue hoists. A small number were exported to Warsaw Pact nations and various other Soviet client states.
The Mi-14 was first flown in September 1969, entering service in only 1975 as a result of apparent development problems. The principal ASW version is known as the Mi-14PL 'Haze-A' while a mine countermeasures model with a starboard-side fuselage strake is the Mi-14BT 'Haze-B' and a dedicated SAR variant which can carry ten 20-person liferafts and a rescue hoist is the Mi-14PS 'Haze-C'.
Preceded by:
NoneSucceeded by:
NoneDesign | Mi-14 |
Code Name | Haze-A |
Type | Anti-Submarine |
Year | 1975 |
Crew | 2 |
Dimensions | |
Length | 25.30 m |
Height | 6.900 m |
Rotor Diameter | |
Rotor Disc Area | |
Wing Span | 21.29 m |
Wing Area | n/a |
Weight | |
Empty | 11,750 kg |
Maximum | 14,000 kg |
Wing Loading | 393.3 kg/m² |
Performance | |
Speed | 230 km/h |
Ceiling | 3,500 m |
Range | 1,135 km |
Powerplant | |
Engine | 2 x TV3-117MT Isotov 1,454 kW |
Thrust/Weight | 0.30 |
Armament | |
Guns | - |
Payload | 2,000 kg |
AS Weapons | E45-75A |
Production | |
Built | n/a |
Total | 150 |
