Interceptor (1964)

Tupolev

Tu-28 'Fiddler'

Tu-28 'Fiddler'
Tu-28 'Fiddler'

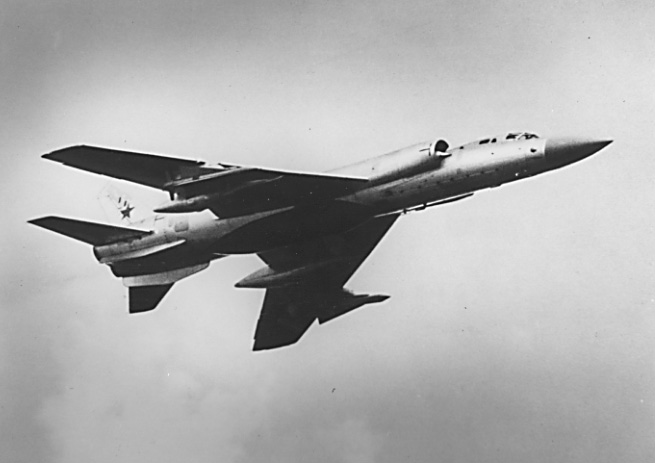

The Tupolev Tu-28 'Fiddler' holds the distinction of being by far the largest interceptor to ever enter service anywhere in the world: it's length and maximum take-off weight are greater than many bombers and even approach those of various airliners! Designed by a team led by I. Nezval, it was designed to intercept enemy bombers at long ranges, long before they could reach ther targets or launch their missiles. As such, the Tu-28 featured tandem seats for both pilot and radar intercept officer, a large I-band radar known as 'Big Nose', and the ability to carry both infrared and semi active homing AA-5 air-to-air missiles; still, this did not alleviate its dependency on ground-control interception. The Tu-28 entered service during the second half of the 1960s with home defense regiments for about a quarter of a century by which time it had been mostly replaced by the smaller but more advanced MiG-31 but a trickle survived shortly after the end of the Cold War.

The Tu-102 development aircraft first flew on 18 March 1961 with deliveries beginning later in the decade as the Tu-28 'Fiddler-A' (company designation Tu-128) , these carried two missiles and a bulged fairing under the fuselage assumed to be an early warning radar. Later, the production standard Tu-28P 'Fiddler-B' had increased armament was was found in front-line service until 1992.

Preceded by:

None

Succeeded by:

None

Datafile

DesignTu-28P
Code NameFiddler-B
TypeInterceptor
Year1966
Crew2
Dimensions
Length30 m
Height7 m
Wing Span18.10 m
Wing Arean/a
Weight
Empty25,960 kg
Maximum45,000 kg
Wing Loading562.5 kg/m²
Performance
SpeedMach 1.6
Ceiling20,000 m
Range5,000 km
Powerplant
Engine2 x AK-7F-2
Lyulka
10,000 kgf
Thrust/Weight0.70
Sensors
RadarSmerch
Armament
Guns-
Payload-
Hardpoints4
AA WeaponsAA-5
Production
Builtn/a
Total199
