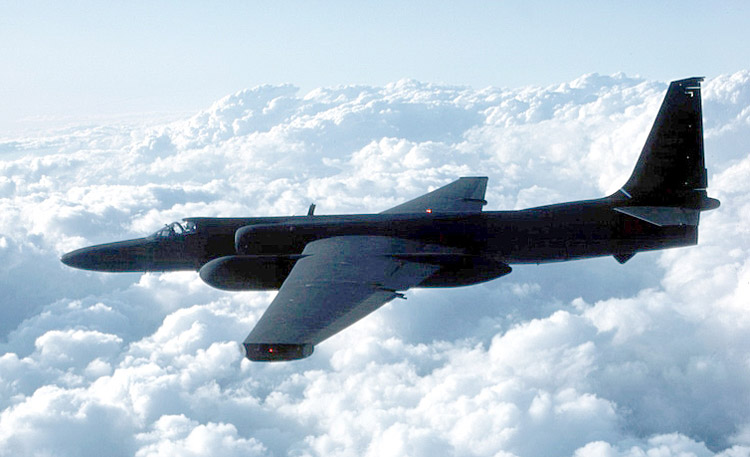

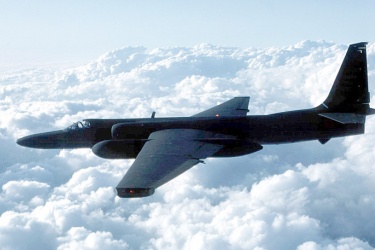

No list of the most famous spy planes ever made can be complete without the Lockheed U-2 Dragon Lady, built by the company's top secret Skunk Works and responsible for one of the US's most infamous Cold War embarassments. The U-2 was originally designed by Kelly Johnson as a high-altitude reconnaissance aircraft with an appearance similar to what would be a jet-powered glider and was used by the CIA and the USAF for clandestine flights over the USSR. However, in 1960 a U-2 piloted by Francis Gary Powers was shot down over Soviet terroitory leading to severe frictions between the two superpowers at the height of the Cold War. Despite this incident, U-2s continued to serve prominently during the following decades: it was a U-2 which initially spotted the USSR's nuclear buildup in Cuba in 1962 and since then they have been used for operations in Korea, the Balkans, Afghanistan and Iraq while a recent upgrade program ensures that U-2s will be active in years to come.
Built in secrecy, the original U-2A was first flown in August 1955 and entered service the following year. Early versions were notorious for their poor handling characteristics and thus the U-2R was developed with increased handling, range and payload. In the late 1970s, the U-2 re-entered production as the TR-1A with more advanced systems but otherwise structurally identical (eventually these reverted to the U-2R designation) and has been further enhanced by the U-2S update with new Pratt & Whitney engines and a modern cockpit among other improvements. Other variants include the ER-2 research aircraft for NASA and the U-2RT and TR-1B trainers.
Preceded by:
NoneSucceeded by:
SR-71 Blackbird (1966)![]() | |
Design | U-2R |
Name | Dragon Lady |
Type | Reconnaissance |
Year | 1967 |
Crew | 1 |
Dimensions | |
Length | 19.13 m |
Height | 4.877 m |
Wing Span | 31.39 m |
Wing Area | n/a |
Weight | |
Empty | 7,031 kg |
Maximum | 18,734 kg |
Wing Loading | 201.6 kg/m² |
Performance | |
Speed | 692 km/h |
Ceiling | 27,432 m |
Range | 10,058 km |
Powerplant | |
Engine | 1 x J75-P-13B Pratt & Whitney 7,711 kgf |
Thrust/Weight | 1.00 |
Armament | |
Guns | - |
Payload | - |
Production | |
Built | 32 |
Total | 86 |
