Land Weapons

Recon Vehicle (1981)

Atelier de Construction d'Issy-les-Moulineaux

AMX-10RC

AMX-10RC
AMX-10RC

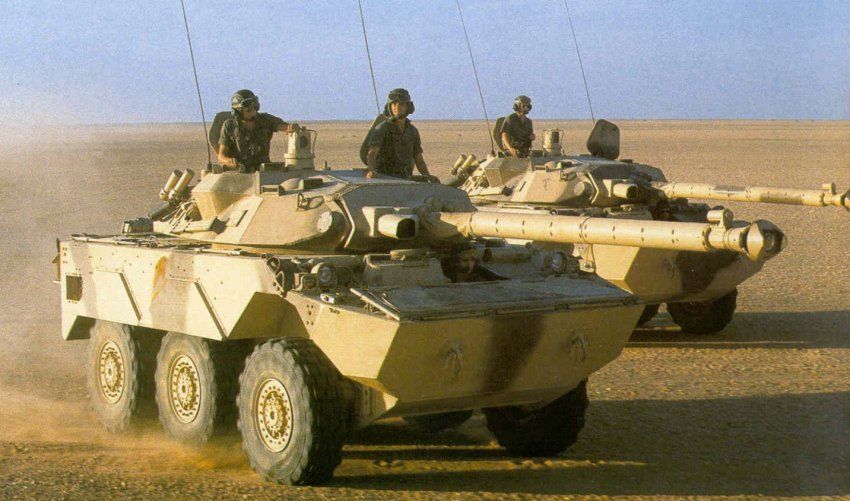

Despite sharing the same base designation as the AMX-10P IFV, the AMX-10RC is an entirely different vehicle designed for reconnaissance duties but shares some of the same automotive components as its counterpart. Most noticeable is the fact that the AMX-10RC is wheeled (6 x 6), rather than tracked, although its skid-steer system functions similarly to those of a tracked vehicle allowing it to turn by moving one set of wheels faster than the other. Additionally, the unique hydroneumatic system allows adjusting the suspension of the entire vehicle as well as just one part of it. The AMX-10RC packs a powerful punch thanks to its 105-mm gun capable of firing NATO-standard ammunition, and is equipped with thermal imaging equipment allowing night engagements. As a result, AMX-10RCs formed an important component (two regiments) of the French contribution to the 1991 Gulf War, and it has also been used more recently in Afghanistan. Additional users include Morocco and Qatar.

The first chassis of the AMX-10RC was completed in June 1971 and entered service in 1981 where it gradually replaced the Panhard EBR in French Army units. No major variants have been built although various private modernization schemes have been proposed. Existing units have received incremental upgrades over the years, notably new Baudouin engines in place of the original 260-hp Renault-built HS 115.

Preceded by:

None

Related:

AMX-10P (1973)

Succeeded by:

None

Datafile

DesignAMX-10RC
TypeRecon Vehicle
Year1981
Crew4
Dimensions
Length (w/Gun)20 ft 10½ in (30 ft 0½ in)
Width7 ft 6½ in
Height5 ft 2 in
Ground Clearance0 ft 0 in
Track0 ft 0½ in
Track on Ground0 ft 0½ in
Weight
Combat35,009 lbs
Empty32,849 lbs
Ground Pressure0 psi
SuspensionHydropneumatic
Performance
Speed (Off-Road)53 mph
Range (Off-Road)621 mi
AmphibiousYes (4 mph)
Vertical Obstacle3 ft 7 in
Trench5 ft 5 in
Gradient50%
Powerplant
Engine1 x 280-hp
Baudouin
6F 11 SRX
FuelDiesel
Power/Weight17.63 hp/t
Armament
Main1 x 105-mm L/48
CN-105 F2

Rifled Gun
↑ 20° / ↓ -8° / ↔ 360°
SecondaryCoaxial:
1 x 7.62-mm
AAN F1
Anti-Aircraft:
1 x 7.62-mm
AAN F1
Ammo7.62-mm: 4,000
Armor
TypeAluminum
Thickness-
Max Effective-
Production
Built457
Total457
