Heavy Tank (1947)

Atelier de Construction de Rueil

ARL 44

ARL 44

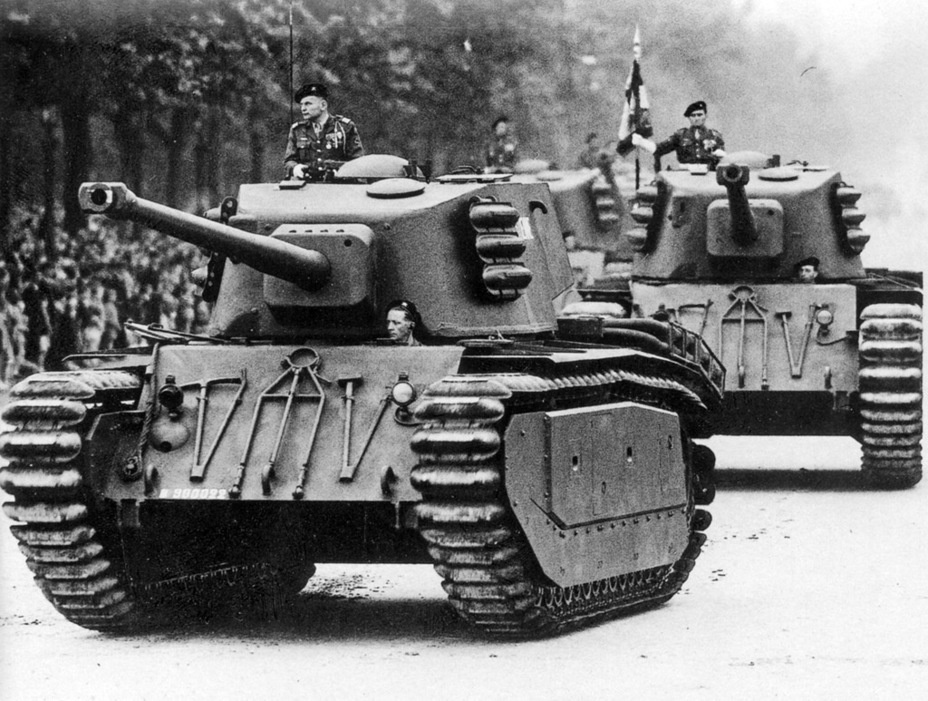

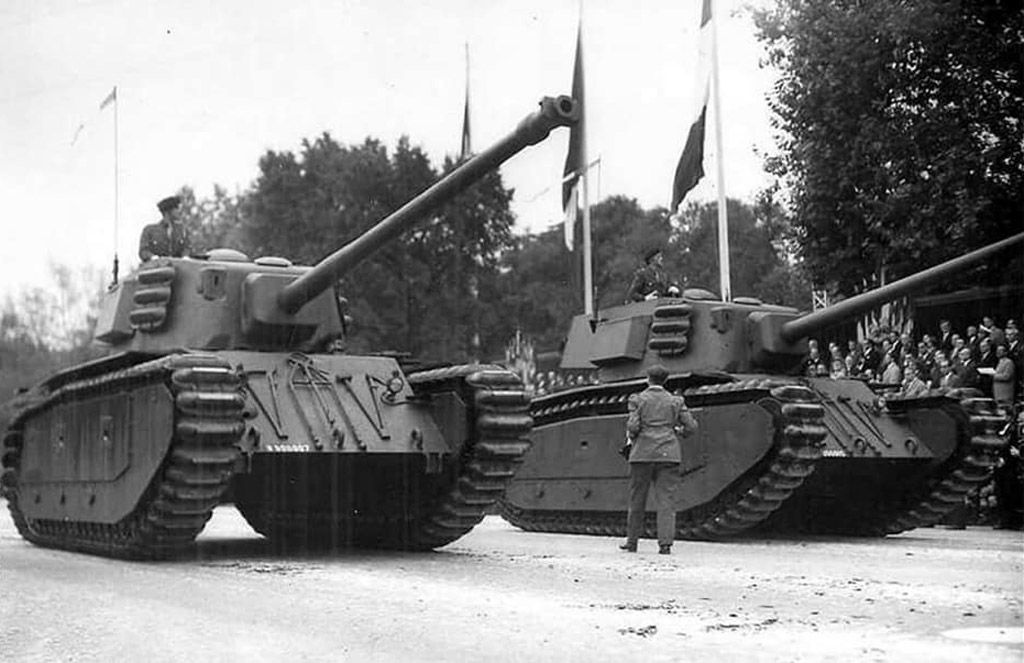

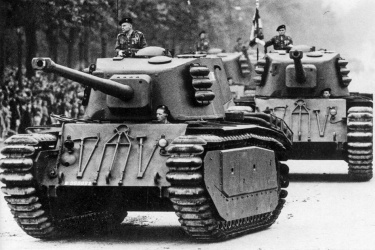

The French had been early advocates of the heavy tank concept, as exemplified by the Char B1. Plans for a successor which could feature the powerful 75-mm gun on the main turret were underway during the onset of hostilities but this came to an abrupt end following the French surrender in 1940. Nevertheless, development continued in secret in Rueil and the resultant ARL-44 came with a unique mix of old and new design concepts. Like most French pre-war heavy tanks, the ARL-44 featured an elongated and narrow hull, ideal for crossing wide trenches. It also featured small road wheels and a conventional suspension plus the prominent side skirts fitted inside the tracks that were characteristic of earlier designs. On the other hand, armor protection was heavy at a maximum of 120 mm and the front slope was similar in shape to that decent punch with its 90-mm DCA45 gun. Production of the ARL-44 was limited to just 60, serving with the 503e Régiment de Chars de Combat. The design was plagued with teething troubled and it was eventually retired as US M47s became available and ultimately, France's first main battle tank, the AMX-30.

The initial project for a new heavy tank was known as the ARL-40, which continued to be developed in secret during the occupation. The resulting ARL-44 was completely shortly after the war ended but was in fact, an entirely new design. It was known as the Char de Transition while other models became available.

Preceded by:

Char B1 (1936)

Succeeded by:

None

Datafile

DesignARL-44
TypeHeavy Tank
Year1947
Crew5
Dimensions
Length (w/Gun)?
Width11 ft 2 in
Height10 ft 6 in
Ground Clearance0 ft 0 in
Track0 ft 0½ in
Track on Ground0 ft 0½ in
Weight
Combat105,822 lbs
Ground Pressure0 psi
SuspensionCoil springs
Performance
Speed (Off-Road)14 mph
Range (Off-Road)93 mi
AmphibiousNo
Fording4 ft 3 in
Vertical Obstacle3 ft 3 in
Trench8 ft 2 in
Gradient50%
Powerplant
Engine1 x 700-hp
Maybach
HL 230
FuelGasoline
Power/Weight14.58 hp/t
Armament
Main1 x 90-mm L/65
90mm DCA 45

Rifled Gun
↑ 15° / ↓ -10° / ↔ 360°
SecondaryCoaxial:
1 x 7.50-mm
7.5mm MAC 31
Anti-Aircraft:
1 x 7.50-mm
7.5mm MAC 31
Ammo7.5-mm: 5,000
Armor
TypeSteel
Thickness120 mm (max)
Max Effective120 mm (max) RHAe
Production
Built60
Total60
