Land Weapons

Self-Propelled Gun (2003)

GIAT Industries

CAESAR

CAESAR

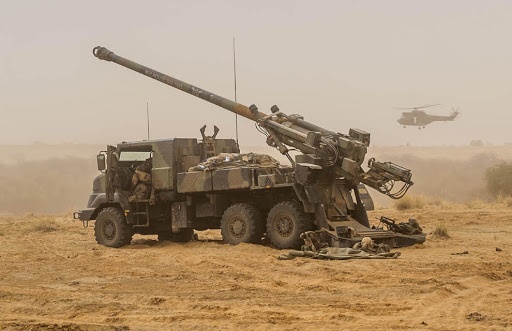

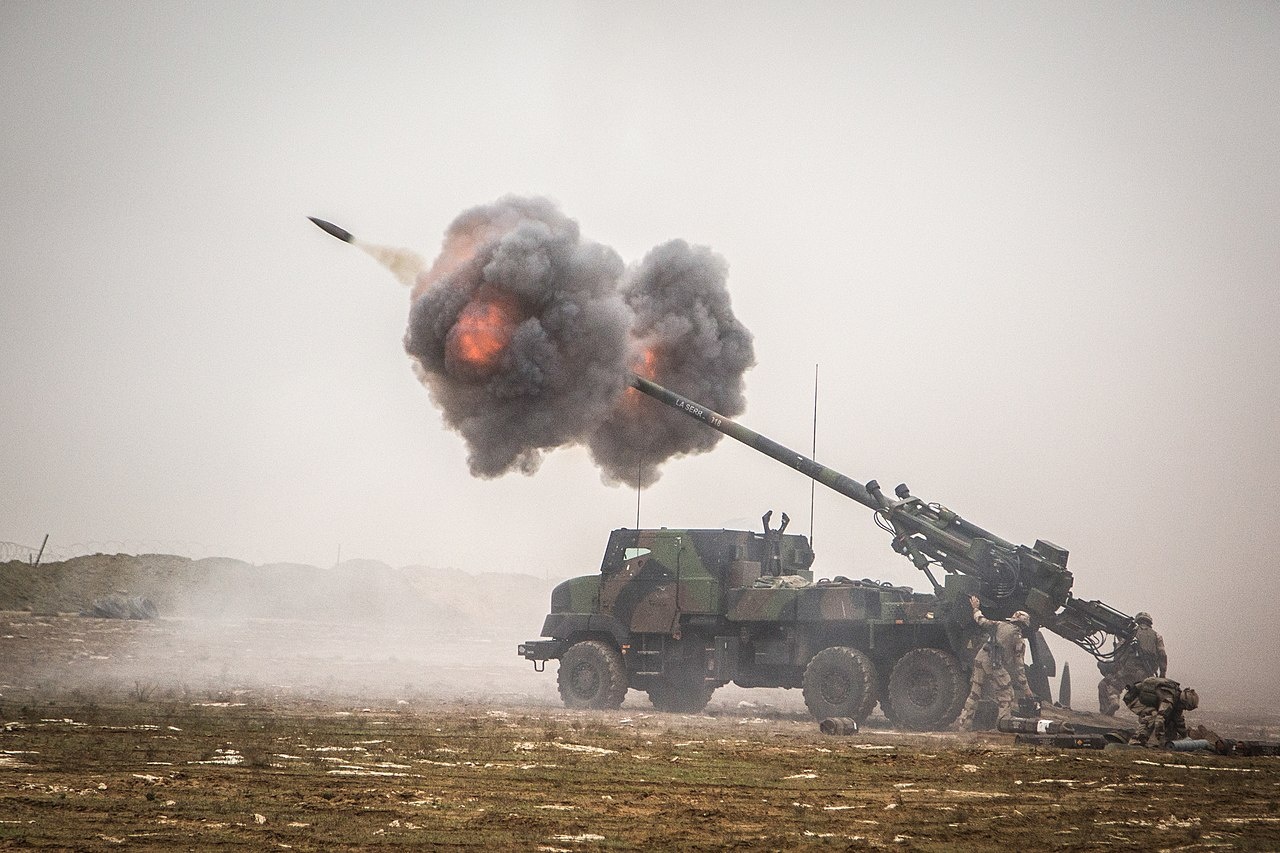

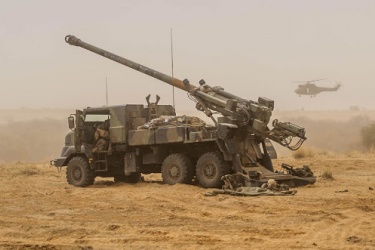

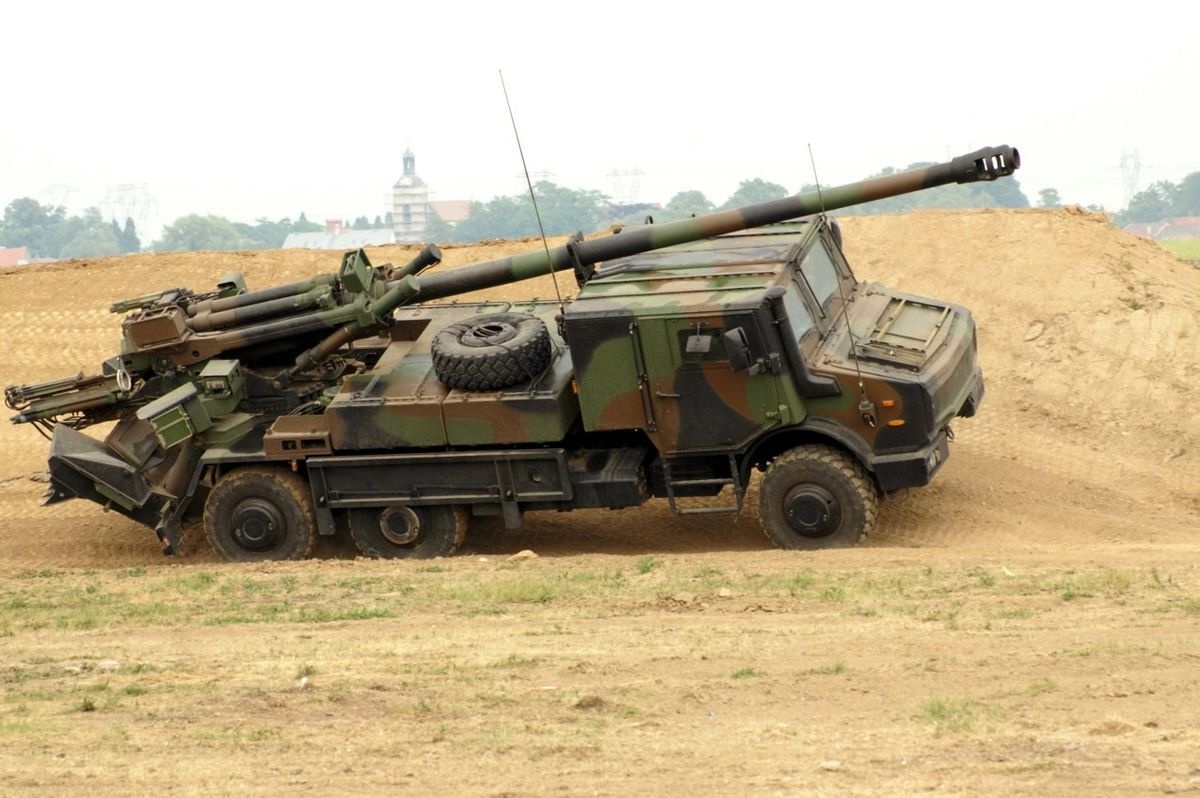

The CAESAR (Camion Equipe d'un Système d'Artillerie) 155 mm self-propelled gun began life as a technology demonstrator by GIAT showing the possibility of installing a heavier gun on a relatively light chassis, thus providing similar firepower to a more expensive tracked SPG. The gun is a 155-mm howitzer made specifically for this chassis, a modified version of a Mercedes-Benz UNIMOG U 2450 6 x 6 truck, and has a larger caliber (L/52) gun to the 155-mm gun mounted on the AMX-30 AuF1, France's other main SPG. Fire control is fully computerized and it can shoot a quick burst of up to six rounds and move off its position in just three minutes, thus reducing its vulnerability to counter-battery fire. The use of extended range base bleed ammunition gives it a maximum firing range of 42 km. Its relatively low weight also enables it to be air-transportable by medium-sized transports such as the C-130 and C.160, and it can be carried in landing craft as well. Despite its beginnings as a private venture, the CAESAR quickly caught the interest of French authorities which adopted it in the early 2000s. It has since seen extensive combat in Afghanistan, Syria, and Iraq during the Battle of Mosul in 2016-17. It has also been adopted by Indonesia, Saudi Arabia, and Thailand, with various other users currently awaiting deliveries.

First seen as a technology demonstrator in 1994, the CAESAR has not had any major variants built. Chassis can vary depending on user, with some export versions being based on Sherpa (6 x 6) and Tatra (8 x 8) trucks.

Preceded by:

None

Succeeded by:

None

Datafile

DesignCAESAR
TypeSelf-Propelled Gun
Year2003
Crew6
Dimensions
Length (w/Gun)32 ft 10 in
Width8 ft 4 in
Height11 ft 12 in
Ground Clearance1 ft 4 in
Track6 ft 2 in
Track on Ground0 ft 0½ in
Weight
Combat38,978 lbs
Empty34,833 lbs
Ground Pressure0 psi
SuspensionCoil springs
Performance
Speed (Off-Road)62 mph
Range (Off-Road)373 mi
AmphibiousNo
Fording4 ft 11 in
Gradient60%
Side Slope40%
Powerplant
Engine1 x 240-hp
Mercedez-Benz
LA
FuelDiesel: 61 gal
Power/Weight13.57 hp/t
Armament
Main1 x 155-mm L/52
CAESAR 155 mm

Howitzer
↑ 66° / ↓ -3° / ↔ 34°
SecondaryNone
Ammo155-mm: 18
Armor
TypeAluminum
Thickness-
Max Effective-
Production
Builtn/a
Total0

Gallery
