Class	Broadsword (1)	Broadsword (2)	Broadsword (3)
Type	Guided Missile Frigate	Guided Missile Frigate	Guided Missile Frigate
Year	1979	1984	1988
Crew	222	273	250
Dimensions
Length	125.7 m (pp) 131.2 m	137.5 m (pp) 148.1 m	137.5 m (pp) 149.5 m
Beam	14.8 m	14.8 m	14.8 m
Draught	6.1 m	6.4 m	6.4 m
Displacement
Empty	4,000 t	4,100 t	4,200 t
Loaded	4,400 t	4,800 t	4,900 t
Performance
Speed	56 km/h / 33 km/h	53 km/h / 33 km/h	53 km/h / 33 km/h
Range	8,334 km @ 33 km/h	14,816 km @ 33 km/h	14,816 km @ 33 km/h
Machinery
Shafts	2	2	2
Turbines	2 x Gas turbine 54,600 hp Rolls-Royce Olympus 2 x Gas turbine 9,700 hp Rolls-Royce Tyne RM.IC	2 x Gas turbine 54,600 hp Rolls-Royce Olympus 2 x Gas turbine 9,700 hp Rolls-Royce Tyne RM.IC	2 x Gas turbine 54,600 hp Rolls-Royce Olympus 2 x Gas turbine 9,700 hp Rolls-Royce Tyne RM.IC
Fuel	Oil	Oil	Oil
Armament
Main	None	None	1 x 114-mm/55 (1 x 1) 4.5-in Mk. 8 -10° / +55°
Anti-Aircraft	2 x 40-mm (2 x 1) QF Bofors L/60 [1] 2 x 20-mm (2 x 1) GAM-BO1 [2]	2 x 40-mm (2 x 1) QF Bofors L/60 [1] 2 x 20-mm (2 x 1) GAM-BO1 [2]	1 x 30-mm (1 x 1) Goalkeeper CIWS 2/4 x 30-mm (2/4 x 1) GCM-AO3
Torpedo tubes	6 x 324-mm (2 x 3)	6 x 324-mm (2 x 3)	6 x 324-mm (2 x 3)
AA Weapons	Sea Wolf (2 x 6) Mk. 46 Stingray	Seacat GWS.25 Mod 3 (2 x 6) Mk. 46 Stingray	Seacat GWS.25 Mod 3 (2 x 6) Stingray
AS Weapons	Exocet MM.38 (4 x 1)	Exocet MM.38 (4 x 1)	RGM-84C (2 x 4)
Armor
Armor	None	None	None
Sensors
Radar	Type 910 Type 967 Type 968 Type 1006	Type 911 Type 967/967M Type 968 Type 1006	Type 911 Type 967/967M Type 968 Type 1006
Sonar	Type 162 Type 165 Type 2016/2050	Type 162 Type 165 Type 2031Z Type 2050	Type 162 Type 165 Type 2031Z Type 2050
Aircraft
Helicopters	2	2	2
Production
Built	4	6	4
Total	14

	Ship	Code	Builder	Laid	Launch	Comm	Decomm	Fate
Broadsword (Type 22) (1):
	Broadsword	F88	Yarrow	07/02/1975	12/05/1976	03/05/1979	30/06/1995	Transferred
	Battleaxe	F89	Yarrow	04/02/1976	18/05/1977	28/03/1980	30/04/1997	Transferred
	Brilliant	F90	Yarrow	25/03/1977	15/12/1978	15/05/1981	30/08/1996	Transferred
	Brazen	F91	Yarrow	18/08/1978	04/03/1980	02/07/1982	30/08/1996	Transferred
Broadsword (Type 22) (2):
	Boxer	F92	Yarrow	01/11/1979	17/06/1981	14/01/1984	04/08/1999	Sunk as target
	Beaver	F93	Yarrow	20/06/1980	08/05/1982	18/12/1984	01/05/1999	Sold/Scrapped
	Brave	F94	Marconi Marine	14/05/1982	19/11/1983	04/07/1986	23/03/1999	Sunk as target
	London	F95	Marconi Marine	07/02/1983	27/10/1984	05/06/1987	14/01/1999	Transferred
	Sheffield	F96	Swan Hunter	29/03/1984	26/03/1986	26/07/1988	15/11/2002	Transferred

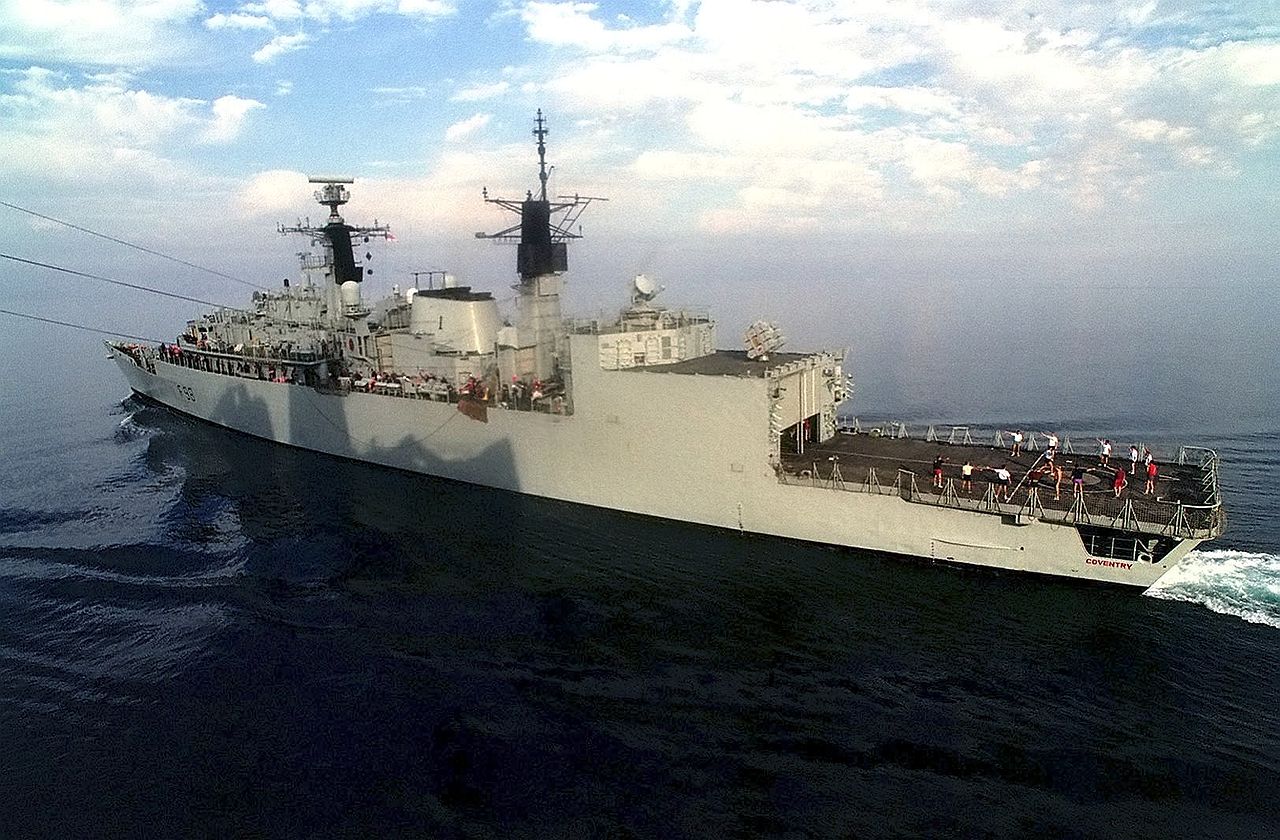

	Coventry	F98	Swan Hunter	29/03/1984	08/04/1986	14/10/1988	17/01/2002	Transferred
Broadsword (Type 22) (3):

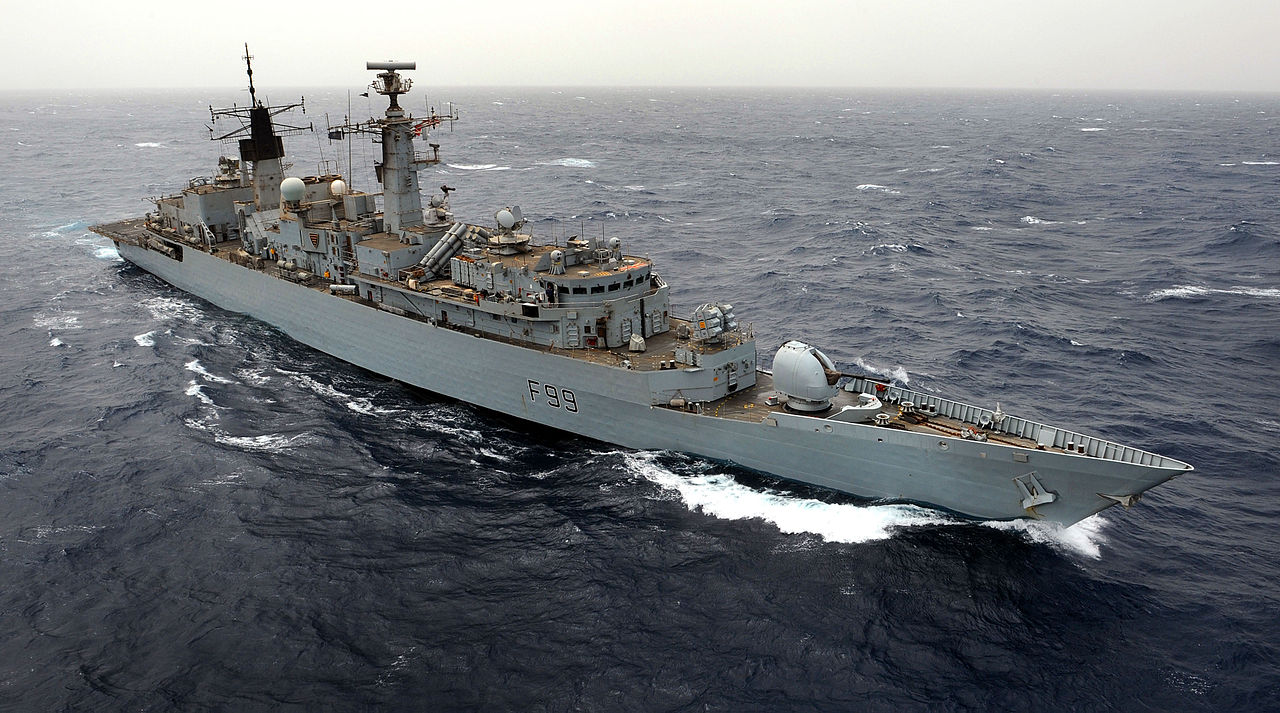

	Cornwall	F99	Marconi Marine	14/12/1983	14/10/1985	23/04/1988	30/06/2011	Sold/Scrapped
	Cumberland	F85	Marconi Marine	12/10/1984	21/06/1986	10/06/1989	23/06/2011	Sold/Scrapped

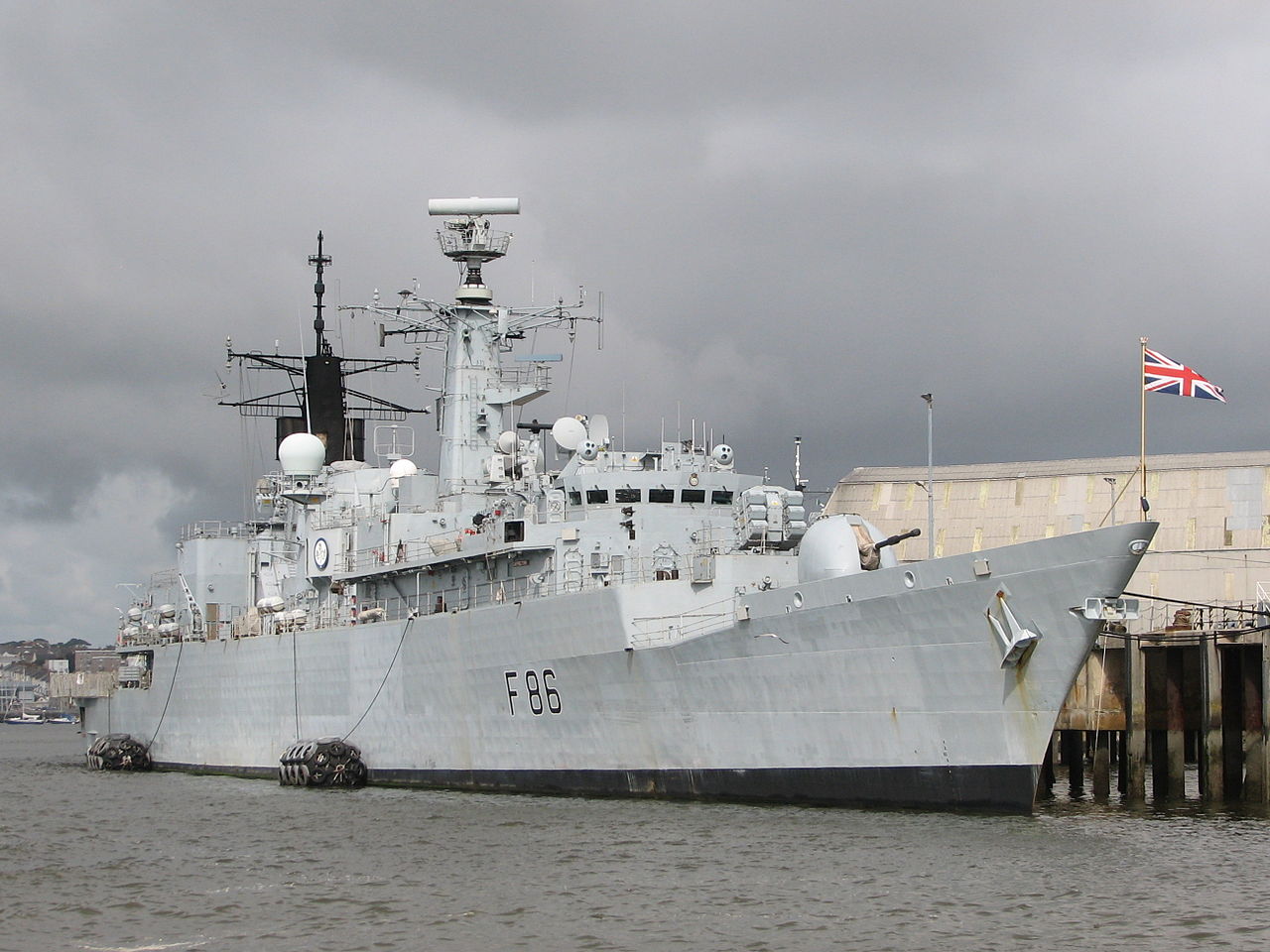

	Campbeltown	F86	Cammell Laird	04/12/1985	07/10/1987	27/05/1989	04/2011	Sold/Scrapped
	Chatham	F87	Swan Hunter	12/05/1986	20/01/1988	04/05/1990	09/02/2011	Sold/Scrapped

Ship	Code	Former	Code	Comm	Decomm	Fate
Greenhalgh	F46	Broadsword	F88	30/06/1995	10/08/2021	Inactive
Dodsworth	F47	Brilliant	F90	31/08/1996	2012	Sold/Scrapped
Bosisio	F48	Brazen	F91	31/08/1996	23/09/2015	Inactive
Rademaker	F49	Battleaxe	F89	30/04/1997	-	Active
Almirante Williams	FF-19	Sheffield	F96	05/09/2003	-	Active
Regele Ferdinand	F221	Coventry	F98	14/01/2003	-	Active
Regina Maria	F222	London	F95	21/04/2005	-	Active
