Guided Missile Frigate (1990)

Duke (Type 23) class

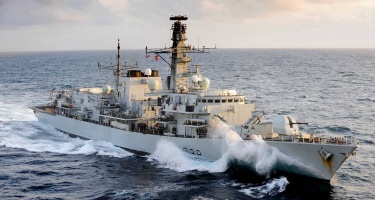

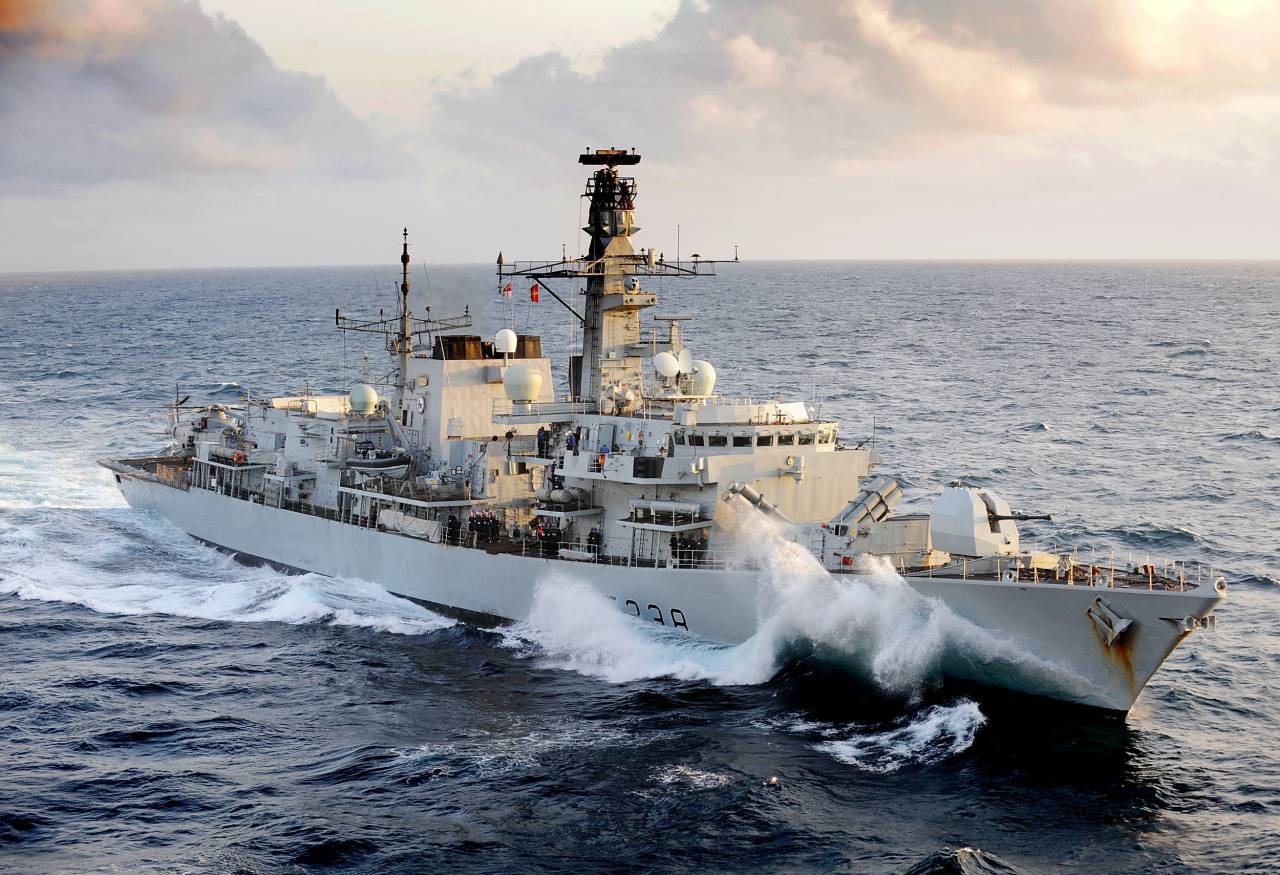

HMS Northumberland (F238)

The Type 23 frigates, also known as the Duke class due to them being named after famous dukes, were the last anti-submarine frigates designed for the Royal Navy before the end of the Cold War and most of which remain in service pending a replacement design. The Type 23s are based around the Type 2031Z towed array sonar as well as a Merlin ASW helicopter. Despite being designed primarily to hunt Soviet submarines in the North Atlantic, the Type 23 ships ended up being a very well rounded frigate design, with considerable anti-aircraft defenses (incorporating lessons learned from the Falklands War) thanks to their Sea Wolf VLS system as well as anti-ship capability from two quad Harpoon launchers. As a result of its towed array system, the Type 23 was designed to be among the quietest ships in the world, operating with a CODLAG system which would allow diesel propulsion during silent running and gas propulsion during normal operations. Some stealth characteristics are also incorporated. Since their introduction just before the end of the Cold War, the Type 23 ships have been modernized with numerous new weapons systems and sensors including a Type 997 Artisan radar, a more advanced Type 2087 towed array sonar, and CAMM missiles. This will keep the Type 23 fleet viable as the Royal Navy's principal anti-submarine force until the introduction of the Type 26 Global Combat Ship sometime in the next decade.

A total of 16 Type 23 ships were commissioned in the Royal Navy, the first in 1990 just before the Cold War ended. Three ships have been sold to Chile (the former HMS Norfolk, HMS Marlborough, and HMS Grafton) while the remaining 13 ships are still in British service. HMS Lancaster (F229) is known for being one of the few modern ships to skip NATO's ordinal pennant number system; its original number of F232 is identical to the Royal Navy's form for grounding a ship and was therefore considered unlucky.

Preceded by:

Broadsword (Type 22) (1979)

Succeeded by:

None

Datafile

ClassType 23
TypeGuided Missile Frigate
Year1990
Crew169
Dimensions
Length123 m (pp)
133 m
Beam16.1 m
Draught7.3 m
Displacement
Empty3,500 t
Loaded4,200 t
Performance
Speed52 km/h / 28 km/h
Range15,742 km @ 28 km/h
Machinery
Shafts2
Turbines2 x Gas turbine
37,540 hp
Rolls-Royce
SM1A/C Spey 2

Fuel-
Armament
Main1 x 114-mm/55 (1 x 1)
4.5-in Mk. 8
-10° / +55°

Anti-Aircraft2 x 30-mm (2 x 1)
GCM-AO3
Torpedo tubes4 x 324-mm (2 x 2)
Launcher32 x GWS.26 VLS
AA WeaponsRGM-84C (2 x 4)
Sea Wolf GWS.26/1 (32)
Stingray
Armor
ArmorNone
Sensors
RadarType 911
Type 996
Type 1007
SonarType 2050
Type 2031Z
Aircraft
Helicopters1
Production
Built16
Total16

Registry

Ship Code Builder Laid Launch Comm Decomm Fate
Norfolk F230 Marconi Marine14/12/198510/07/198701/06/199015/04/2005Transferred
Argyll F231 Marconi Marine20/03/198708/04/198931/05/1991-Active
Lancaster F229 Marconi Marine18/12/198724/05/199001/05/1992-Active
Marlborough F233 Swan Hunter22/10/198721/01/198914/06/199108/07/2005Transferred
Iron Duke F234 Marconi Marine12/12/198802/03/199120/05/1993-Active

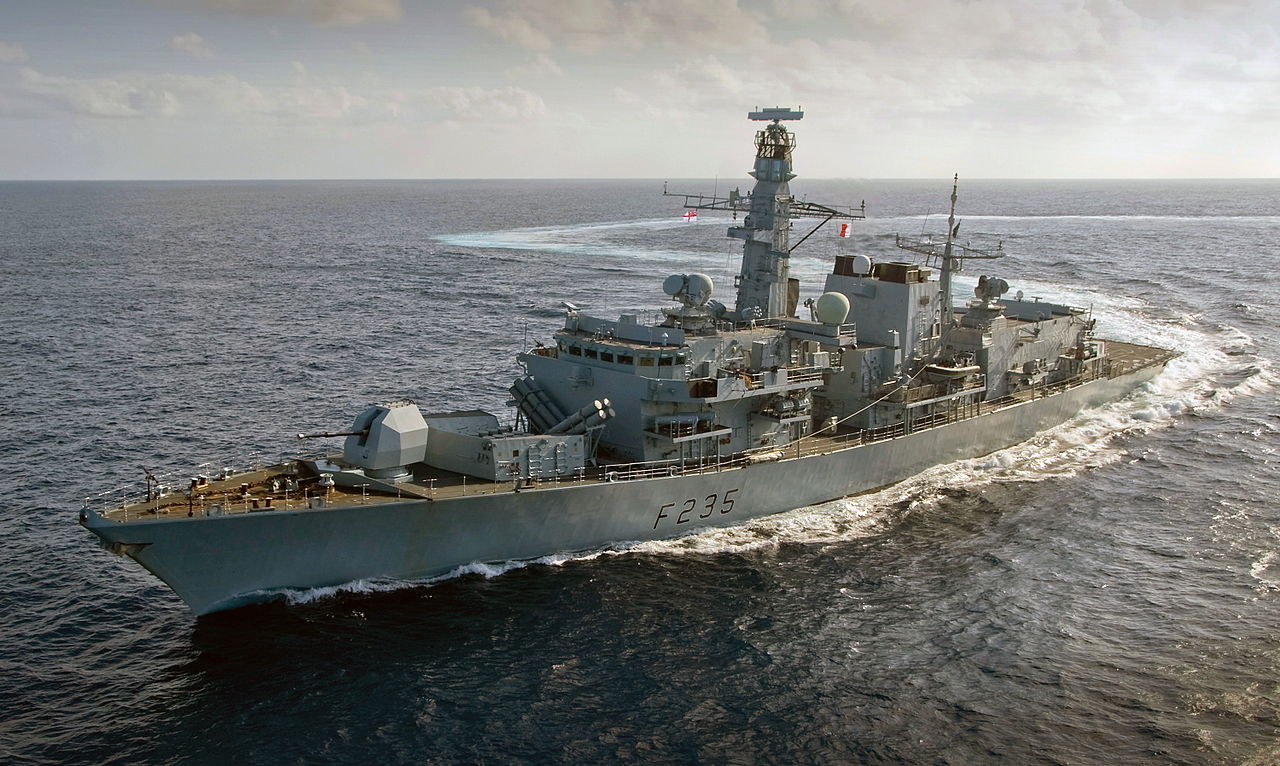

Monmouth F235 Marconi Marine01/06/198923/11/199124/09/199330/06/2021Inactive
Montrose F236 Marconi Marine01/11/198931/07/199202/06/199417/04/2023Inactive
Westminster F237 Swan Hunter18/01/199104/02/199213/05/1994-Active
Northumberland F238 Swan Hunter04/04/199104/04/199229/11/1994-Active
Richmond F239 Marconi Marine16/02/199206/04/199322/06/1995-Active

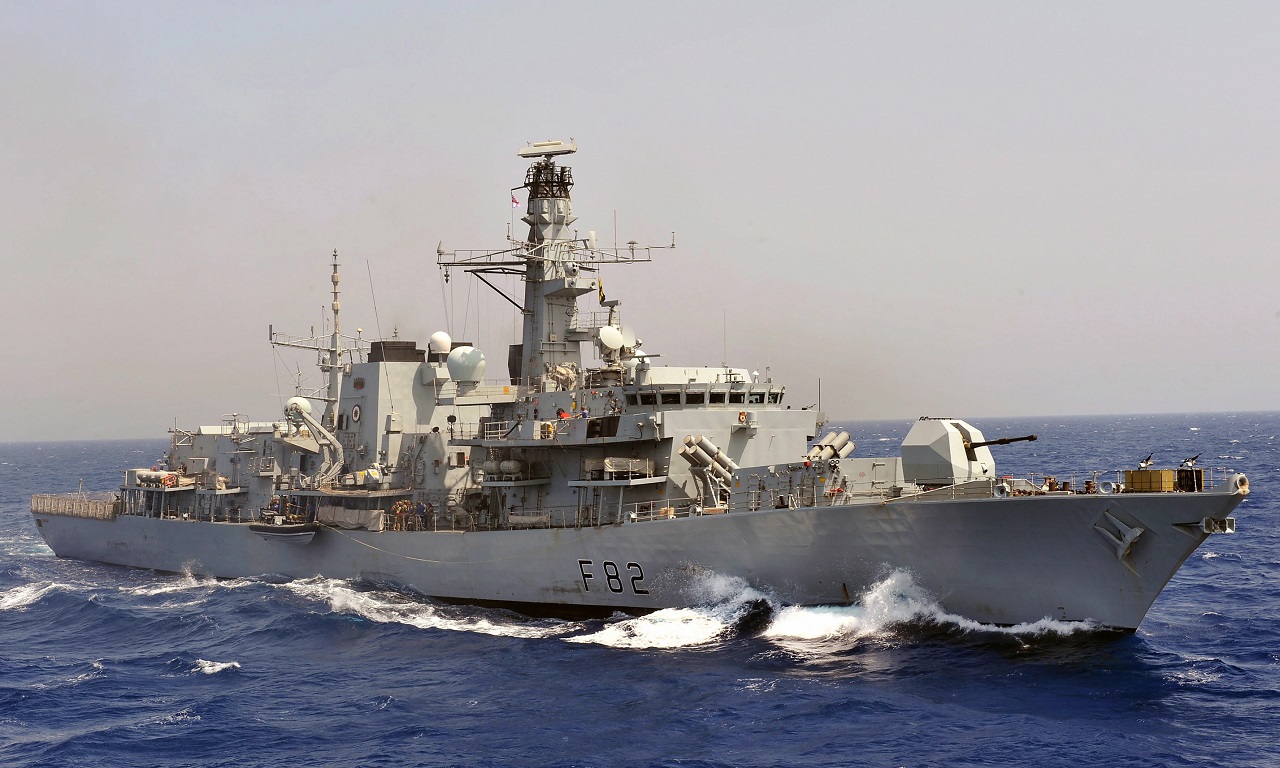

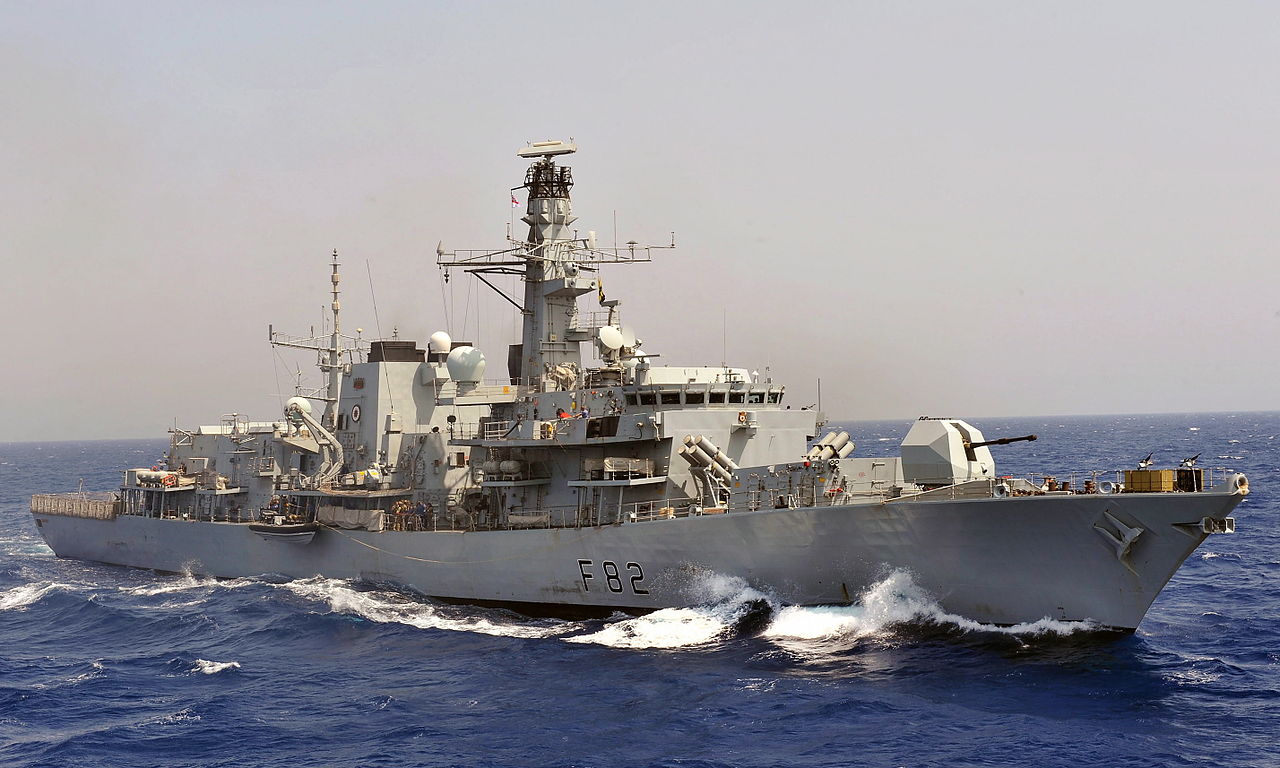

Somerset F82 Marconi Marine12/10/199225/06/199420/09/1996-Active
Grafton F80 Marconi Marine13/05/199305/11/199429/05/199731/03/2006Transferred

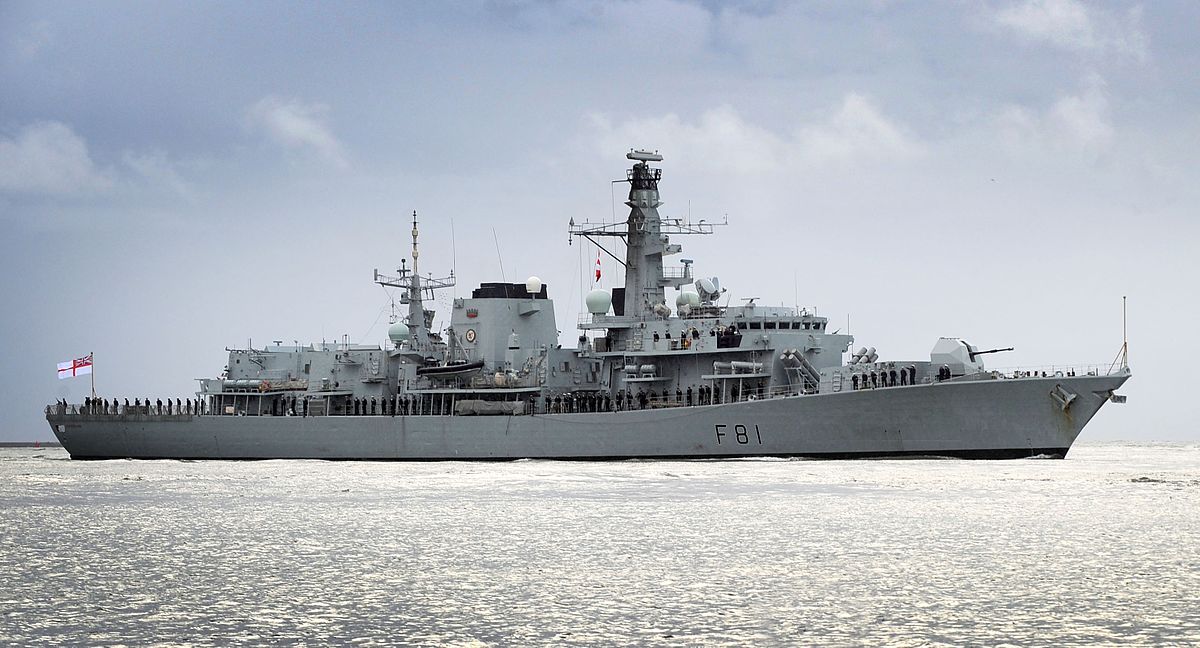

Sutherland F81 Marconi Marine14/10/199309/03/199604/07/1997-Active
Kent F78 Marconi Marine16/04/199727/05/199808/06/2000-Active
Portland F79 Marconi Marine14/01/199815/05/199903/05/2001-Active
St Albans F83 Marconi Marine18/04/199906/05/200006/06/2002-Active
Transfers:
Ship Code Former Code Comm Decomm Fate
Almirante Chochrane FF-05 Norfolk F230 22/11/2006-Active
Almirante Condell FF-06 Marlborough F233 28/05/2008-Active
Almirante Lynch FF-07 Grafton F80 28/03/2007-Active
