Preceded by:
Floréal (1992)Class | La Fayette |
Type | Guided Missile Frigate |
Year | 1996 |
Crew | 156 |
Dimensions | |
Length | 115 m (pp) 125 m |
Beam | 15.4 m |
Draught | 4 m |
Displacement | |
Empty | 3,280 t |
Loaded | 3,700 t |
Performance | |
Speed | 65 km/h |
Range | 16,668 km @ 28 km/h |
Machinery | |
Shafts | 2 |
Turbines | 4 x Diesel engine hp 21100 |
Fuel | - |
Armament | |
Main | |
Anti-Aircraft | |
AA Weapons | MM40 Exocet (2 x 4) Croatale EDIR (1 x 8) |
Armor | |
Armor | None |
Sensors | |
Radar | DRBV 15C DRBN 34A Castor 2J |
Aircraft | |
Helicopters | 1 |
Production | |
Built | 5 |
Total | 14 |
Ship | Code | Builder | Laid | Launch | Comm | Decomm | Fate | ||

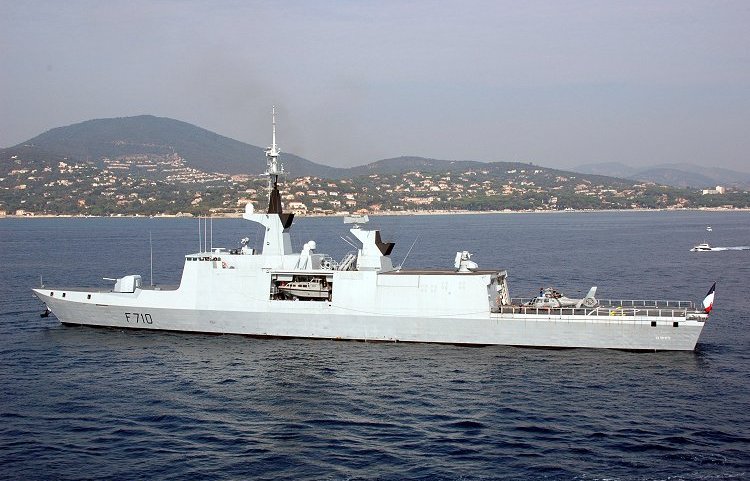

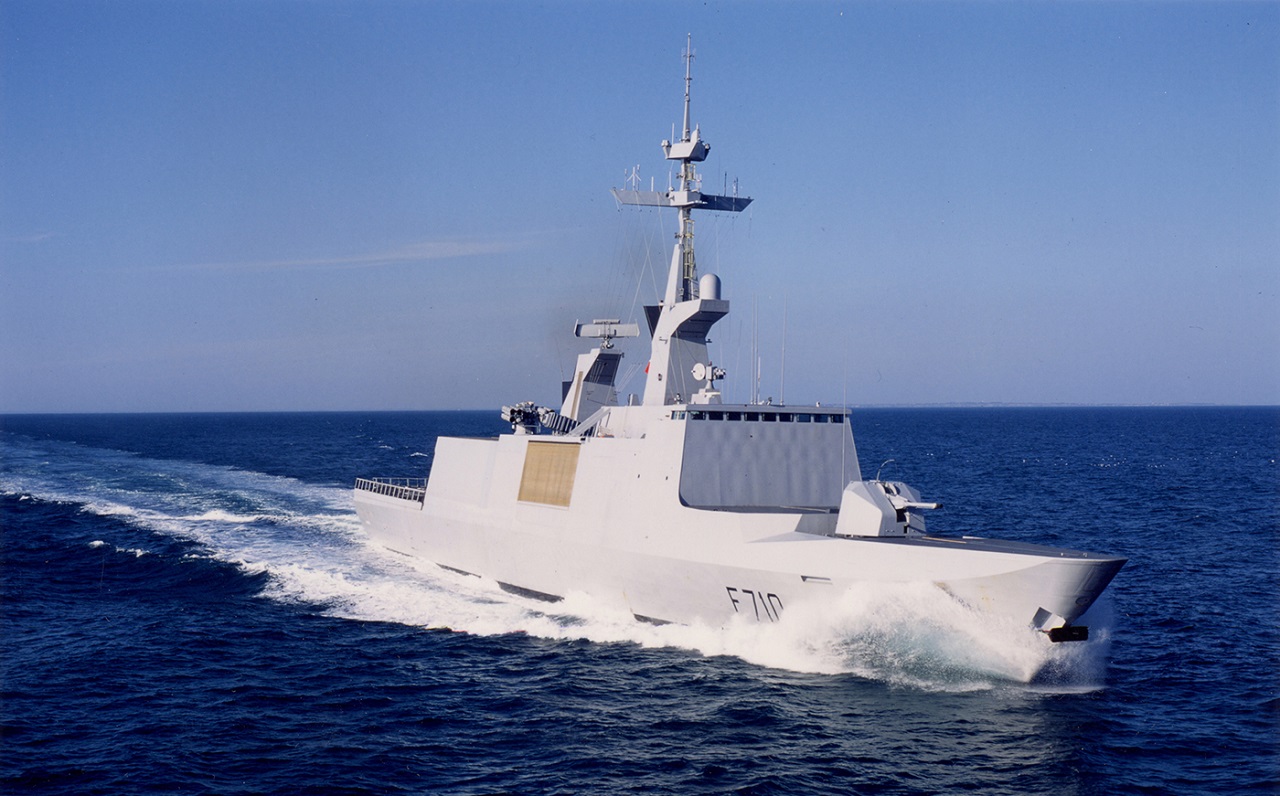

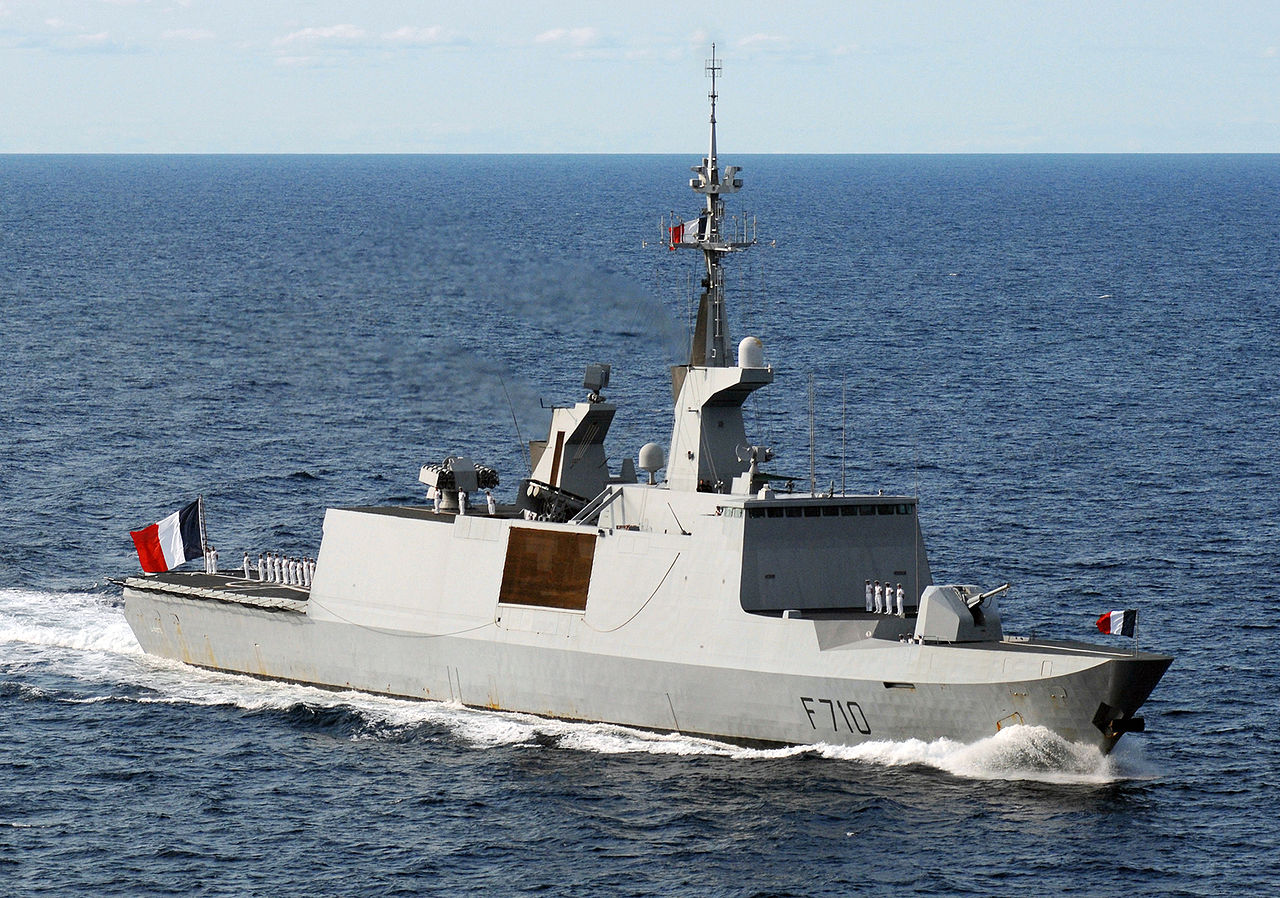

La Fayette | F710 | DCN | 15/12/1990 | 13/06/1992 | 22/03/1996 | - | Active | ||

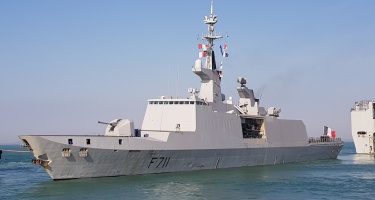

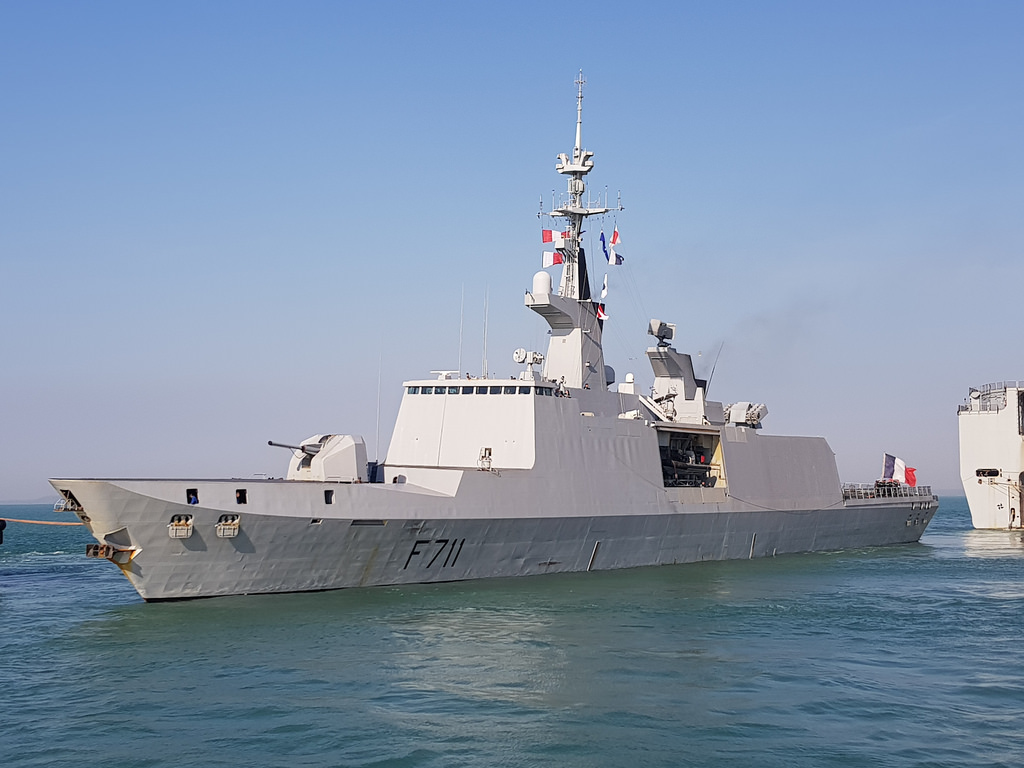

Surcouf | F711 | DCN | 06/07/1992 | 03/07/1993 | 07/02/1997 | - | Active | ||
Courbet | F712 | DCN | 15/09/1993 | 12/03/1994 | 01/04/1997 | - | Active | ||
Aconit | F713 | DCN | 05/08/1996 | 08/06/1997 | 06/06/1999 | - | Active | ||
Guépratte | F714 | DCN | 01/10/1998 | 03/03/1999 | 27/10/2001 | - | Active | ||
Kang Ding / La Fayette: | |||||||||
Kang Ding | FFG-1202 | DCN | 01/08/1993 | 12/03/1994 | 24/05/1996 | - | Active | ||
Hsi Ning | FFG-1203 | DCN | 28/03/1994 | 05/11/1994 | 12/10/1996 | - | Active | ||
Kun Ming | FFG-1205 | DCN | 07/11/1994 | 13/05/1995 | 26/02/1997 | - | Active | ||
Di Hua | FFG-1206 | DCN | 01/07/1995 | 26/11/1995 | 08/08/1997 | - | Active | ||
Wu Chang | FFG-1207 | DCN | 01/07/1995 | 26/11/1995 | 16/12/1997 | - | Active | ||
Chen De | FFG-1208 | DCN | 27/12/1995 | 02/08/1996 | 19/03/1998 | - | Active | ||
Al Riyadh / La Fayette: | |||||||||
Al Riyadh | 812 | DCN | 29/09/1999 | 01/08/2000 | 26/07/2002 | - | Active | ||
Makkah | 814 | DCN | 25/08/2000 | 20/07/2001 | 03/04/2004 | - | Active | ||
Al Damman | 816 | DCN | 26/08/2001 | 07/09/2002 | 23/10/2004 | - | Active | ||
Formidable / La Fayette: | |||||||||
Formidable | 68 | DCNS | 14/11/2002 | 07/01/2004 | 05/05/2007 | - | Active | ||
Intrepid | 69 | ST Marine | 08/03/2003 | 03/07/2004 | 05/02/2008 | - | Active | ||

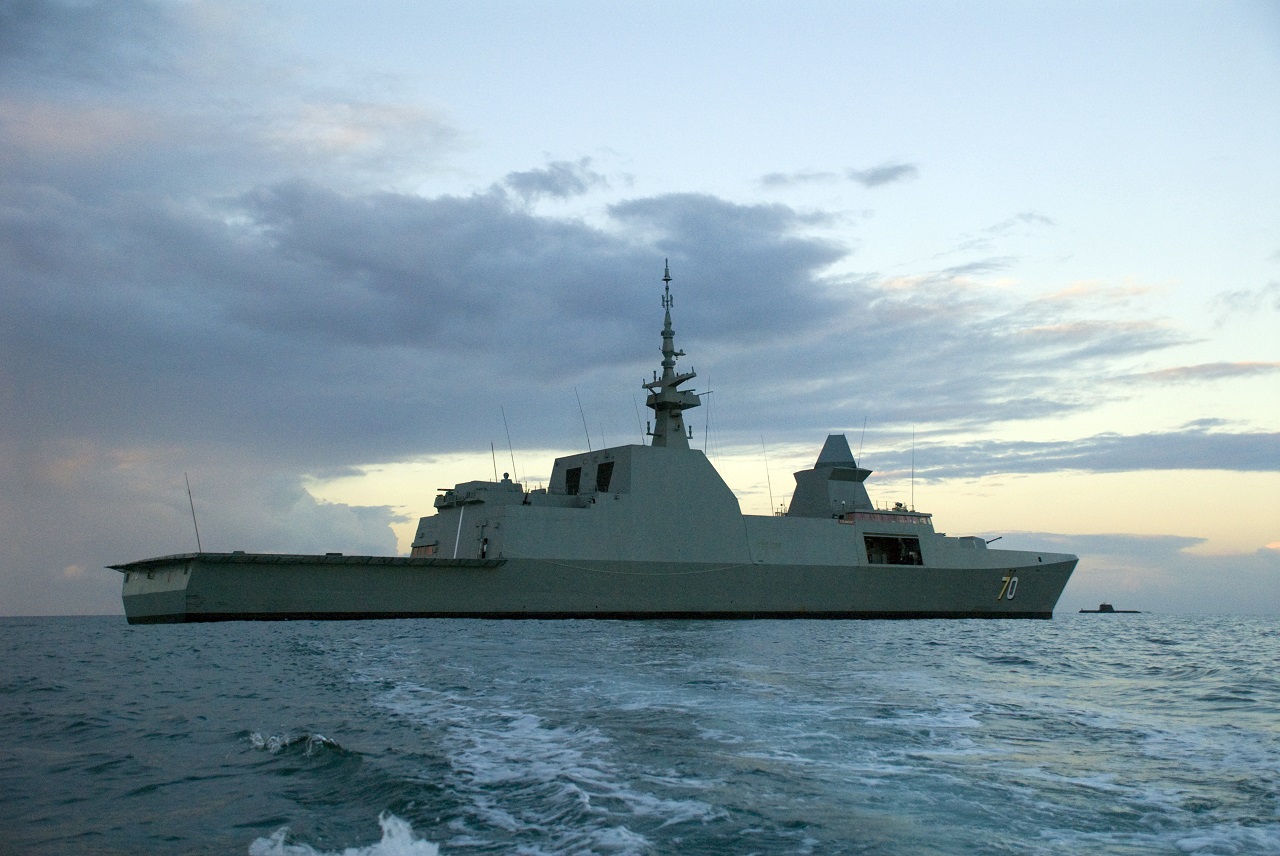

Steadfast | 70 | ST Marine | 15/11/2003 | 28/01/2005 | 05/02/2008 | - | Active | ||
Tenacious | 71 | ST Marine | 22/05/2004 | 15/07/2005 | 05/02/2008 | - | Active | ||
Stalwart | 72 | ST Marine | 12/11/2005 | 09/12/2005 | 16/01/2009 | - | Active | ||
Supreme | 73 | ST Marine | 17/05/2005 | 09/05/2006 | 16/01/2009 | - | Active |
